Spider lift rental: 8 CTE and Teupen machines with 13-39.5 m working height, all with Bi-Energy drive. Delivered from Passau. Request a quote.

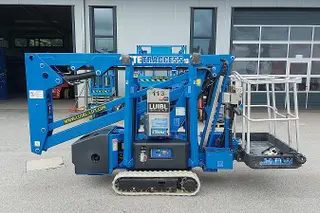

Image of a rental machine of type KGTB-130 | CTE TRACCESS 135

KGTB-130 | CTE TRACCESS 135

Working height
13,00 m
Lifting capacity
200 kg
Lateral reach
6,50 m
Drive unit
Bi-Energy
Details
Image of a rental machine of type KGTB-170 | CTE TRACCESS 170

KGTB-170 | CTE TRACCESS 170

Working height
17,00 m
Lifting capacity
200 kg
Lateral reach
7,50 m
Drive unit
Bi-Energy
Details

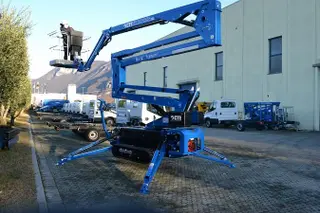

Image of a rental machine of type KGTB-200 | CTE TRACCESS 200

KGTB-200 | CTE TRACCESS 200

Working height
20,00 m
Lifting capacity
250 kg
Lateral reach
8,50 m
Drive unit
Bi-Energy
Details

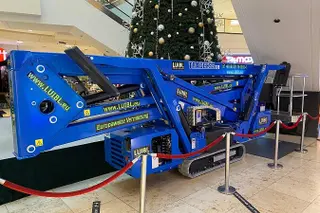

Image of a rental machine of type KGTB-270 | CTE TRACCESS 270

KGTB-270 | CTE TRACCESS 270

Working height
27,00 m
Lifting capacity
250 kg
Lateral reach
14,00 m
Drive unit
Bi-Energy
Details

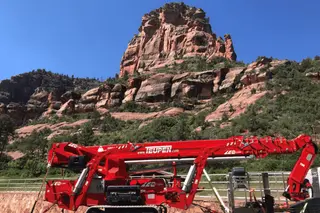

Image of a rental machine of type KTB-300 | Teupen LEO30Tplus

KTB-300 | Teupen LEO30Tplus

Working height
30,00 m
Lifting capacity
400 kg
Lateral reach
16,00 m
Drive unit
Bi-Energy
Details

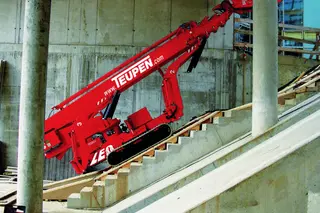

Image of a rental machine of type KTB-300 | Teupen LEO30T

KTB-300 | Teupen LEO30T

Working height
30,00 m
Lifting capacity
200 kg
Lateral reach
15,70 m
Drive unit
Bi-Energy
Details

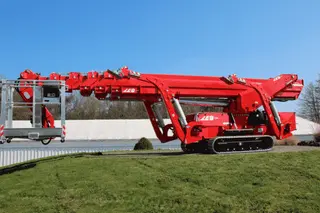

Image of a rental machine of type KTB-350 | Teupen LEO35Tplus

KTB-350 | Teupen LEO35Tplus

Working height
35,00 m
Lifting capacity
400 kg
Lateral reach
16,00 m
Drive unit
Bi-Energy
Details

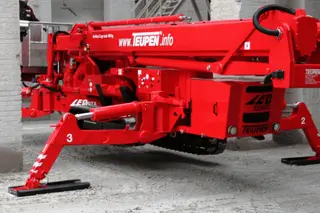

Image of a rental machine of type KTB-400 | Teupen LEO40GTX

KTB-400 | Teupen LEO40GTX

Working height
39,50 m
Lifting capacity
400 kg
Lateral reach
16,70 m
Drive unit
Bi-Energy
Details

Spider lift rental - tracked platforms from 13 to 39.5 m for difficult ground

Luibl rents out eight spider lifts from CTE and Teupen with 13.00 to 39.50 m working height and up to 17.00 m outreach, all with Bi-Energy drive, delivered to your site with our own low-loader from Passau throughout the Czech Republic. Spider lifts - also known as tracked aerial work platforms or crawler platforms - take you where wheels sink in, floors would be damaged or access routes are too narrow. How a spider lift differs from scissor, articulating and telescopic boom lifts is explained in our overview Rent a lifting platform - designs compared; all aerial work platforms in our rental fleet can be found under Aerial work platform rental.

Three questions decide which machine is right: How narrow is the access, how much load can the ground bear, and how far to the side of the set-up area is the working point? The following sections answer them one by one.

Spider lifts protect sensitive floors and drive where wheels sink in

The crawler undercarriage spreads the weight of the machine over a large contact area. Compared with a wheeled chassis, ground pressure is significantly lower - lawns, paving and indoor floors stay intact. On parquet, natural stone or tiles, the rubber tracks usually leave no marks. Off-road, spider lifts drive over mud, sand and gravel where wheels spin.

For work at height, the machine stands on four fold-out outriggers. These can be levelled individually, so the platform stands level even on slopes, on stair landings or next to flowerbed edging.

Key data of our spider lifts:

  • Working height: 13.00 to 39.50 m
  • Basket load capacity: 200 to 400 kg
  • Outreach: 6.50 to 17.00 m
  • Travel width retracted: from 0.78 m (CTE TRACCESS 135, 200 and 270)
  • Dead weight: 1,600 to 11,900 kg
  • Drive: Bi-Energy - combustion engine for outdoor use, electric operation for indoor spaces

Ground protection: every surface needs its own preparation

The crawler undercarriage protects the ground while driving. During work, however, the load is concentrated on the four outrigger pads. What lies beneath the outriggers is therefore decisive for damage-free use. Before delivery, clarify which of the following surfaces you have at the workplace:

  • Lawns, parks, cemeteries: The tracks spread the load well along the travel route. Load-spreading pads belong under the outriggers so that the feet do not sink into damp ground. After longer periods of rain, plan for a larger pad area.
  • Paving, paving slabs, terraces: Individual slabs can break or tilt under point loads if the bed beneath gives way. Pads bridge several stones and spread the outrigger load. Where there are cavities - for example above cellars or utility shafts - check the load-bearing capacity with the owner in advance.
  • Indoor floors such as parquet, natural stone, tiles and screed: The rubber tracks leave no marks. Place the outrigger pads on protective boards or mats. For floors with underfloor heating, raised floors or old timber-beam ceilings, the permissible distributed and point loads must be known before the machine enters the room.
  • Gravel, sand, crushed stone, construction site areas: This is where the tracks show their off-road capability. Set the outriggers on compacted ground or on sufficiently large pads.
  • Slopes and steps: The individually adjustable outriggers compensate for inclines. The permissible gradient for setting up is given in the operating manual of the respective machine - we will advise you on this before you rent.

Dead weight is the most important figure for planning: a CTE TRACCESS 135 weighs 1,600 kg, a Teupen LEO40GTX 11,900 kg. Tell us the ground conditions in your enquiry - we will then recommend the lightest machine that reaches your working height.

Eight spider lifts from 13 to 39.5 m: CTE for narrow access, Teupen for outreach

Our rental fleet is divided into two series with clearly distinct strengths. The CTE TRACCESS models are narrow and light and fit through gates and doorways. The Teupen LEO models reach greater heights and outreach but are 1.58 m wide.

ModelWorking heightOutreachLoad capacityWidthWeight
CTE TRACCESS 13513.00 m6.50 m200 kg0.78 m1,600 kg
CTE TRACCESS 17017.00 m7.50 m200 kg0.80 m2,050 kg
CTE TRACCESS 20020.00 m8.50 m250 kg0.78 m2,782 kg
CTE TRACCESS 27027.00 m14.00 m250 kg0.78 m4,350 kg
Teupen LEO30T30.00 m15.70 m200 kg1.58 m4,300 kg
Teupen LEO30Tplus30.00 m17.00 m400 kg1.58 m4,100 kg
Teupen LEO35Tplus35.00 m16.00 m400 kg1.58 m5,400 kg
Teupen LEO40GTX39.50 m16.70 m400 kg1.58 m11,900 kg

How to read the table:

  • Access narrower than 1 m: Only the CTE TRACCESS series is an option. With the TRACCESS 270 you still reach 27 m working height and 14 m outreach, even through narrow access points.
  • Large outreach: From 15 m outreach, the choice is Teupen. The LEO30Tplus reaches 17.00 m - the largest outreach in our rental fleet.
  • Heavy material or two people with tools: The Plus models and the LEO40GTX carry 400 kg in the basket.
  • Maximum height: The Teupen LEO40GTX reaches 39.50 m but weighs 11,900 kg. For sensitive floors, first check whether the LEO35Tplus with 35 m and 5,400 kg is sufficient.

Applications: spider lifts are the first choice when access or ground rule out a wheeled machine

A spider lift pays off whenever a wheeled aerial work platform cannot reach the workplace or would damage the ground. In practice, there are four such situations:

  • Green spaces and tree care: Narrow models from 0.78 m fit through garden gates into backyards and parks. The tracks protect lawns and root zones, and the outreach brings the basket into the crown.
  • Interiors and listed buildings: In churches, museums, halls and shopping centres, the machines work in electric mode without exhaust fumes on site. The rubber tracks protect parquet, natural stone and tiles.
  • Facades, glass and building services: Glass cleaning, skylights, signage and maintenance on hard-to-reach exterior fronts, even when unpaved ground surrounds the building. The slewing upper structure saves repositioning.
  • Rough terrain and events: Construction sites with mud, sand or gravel, slopes, as well as stage building and rigging at events - without anchoring in the ground and without damage to hall floors or lawns.

Practical example from heritage conservation: how to plan a job in a church nave

Listed interiors make every demand at once: narrow portals, sensitive floors, no exhaust fumes and working points high above pews or fittings. The following example shows how to plan such a job step by step - for instance, to inspect a vaulted ceiling at a height of 16 m.

  1. Measure the access: The clear width of the portal or side entrance determines the series. With a clear width of less than 1 m, only a CTE TRACCESS is an option - for 16 m working height the TRACCESS 170 with a width of 0.80 m or, if you need extra clearance above the pews, the TRACCESS 200 with 20 m working height and 8.50 m outreach.
  2. Clarify floor and loads: Agree with the heritage conservation authority and the owner what distributed load the floor can bear and whether there are crypts or cavities beneath it. Plan protective boards for the travel route and pads for the outriggers.
  3. Fix the set-up point: If pews are in the way, the machine works from the centre aisle. The outreach must then bridge the distance to the working point.
  4. Plan for electric operation: Indoors, the machine drives and works electrically. Clarify where the machine can be charged during longer jobs.
  5. Coordinate time windows: Services, guided tours and concerts determine working hours. Allow for set-up and repositioning time and enquire early.

The same approach applies to museums, castles, theatres and historic halls.

Safety: operators need training and authorisation from their employer

Aerial work platforms should only be operated by persons who have been trained in line with applicable Czech safety rules and CSN EN standards and who have been authorised by their employer to operate them. Requirements for the safe operation of work equipment are set out in Government Regulation No. 378/2001 Coll.; work at height is governed by Government Regulation No. 362/2005 Coll. On handover, we brief your operators on how to use the specific spider lift.

For basic training, we recommend an aerial work platform course to the IPAF standard. Luibl does not offer training itself, but informs you about certified providers: Training.

Delivery by our own low-loader - from Passau throughout the Czech Republic

Spider lifts are not approved for use on public roads. Luibl therefore delivers them with its own low-loader from our base in Passau directly to your site - throughout the Czech Republic. The transport weight ranges from 1,600 kg for the CTE TRACCESS 135 to 11,900 kg for the Teupen LEO40GTX and helps determine the vehicle and costs. Please tell us what the access route is like and where the low-loader can unload.

If the ground is paved and the working point is freely accessible, wheeled machines are often the more economical choice: articulating boom lifts for work over obstacles and telescopic boom lifts for great heights.

How much does it cost to rent a spider lift?

Spider lifts cost more to rent than comparable wheeled machines - the crawler undercarriage, the variable outrigger system and the rubber tracks are more complex. The machine becomes economical where an alternative could not be used at all or where ground protection would otherwise be costly.

These factors determine the rental price:

  • Working height and outreach: There are several classes between a 13-metre machine for indoor use and a 39.5-metre spider lift. With up to 17 m outreach, reach often matters more than height.
  • Series: the narrow CTE TRACCESS models for tight access, the Teupen LEO models for long outreach and 400 kg basket load.
  • Rental period: Daily, weekly and monthly rates are staggered; for longer projects, long-term conditions apply, including maintenance and periodic inspection during the rental period.
  • Transport: Delivery and collection by our own low-loader are shown separately, based on the distance from Passau, transport weight and access.

If the ground has sufficient load-bearing capacity and the working point is freely accessible, also consider the more economical alternatives: a scissor lift for purely vertical work or an articulating boom lift on wheels. All designs at a glance: Aerial work platform rental.

FAQ on spider lifts

chevronDown

For which ground types is a spider lift best suited?

Spider lifts are specialised for extremely pressure-sensitive or uneven ground. Thanks to the wide load distribution of the crawler undercarriage, the specific ground pressure is minimal. They are therefore the first choice for lawns, historic paving, hall floors with underfloor heating or tiles in shopping centres. Outdoors, they cope with mud, sand and inclines where wheeled platforms would fail.

Do spider lifts fit through normal doors?

Yes, that is one of their biggest advantages. Many models in our rental fleet (e.g. in the 15 m to 17 m class) have a narrow undercarriage that is often only 78 cm to 90 cm wide when retracted. This means the machines can easily be manoeuvred through standard interior doors, garden gates or narrow passages in industrial plants.

How does the outrigger system work on uneven ground or stairs?

Spider lifts have a so-called variable outrigger system. The four outriggers can often be positioned asymmetrically and at different angles. This allows the machine to be levelled perfectly even on slopes, over wall projections or on steps. Modern sensor technology provides automatic levelling at the push of a button.

Does Luibl deliver the spider lift directly to the construction site?

Absolutely. As spider lifts have no road approval due to their tracked drive and cannot travel to the site on their own, we organise transport with our special low-loaders. We deliver on the agreed date from Passau throughout the Czech Republic and, if required, throughout Europe directly to your site.

Is a spider lift the same as a crawler platform?

Yes. Spider lift, crawler platform and tracked aerial work platform describe the same design: an aerial work platform with a tracked undercarriage and four fold-out outriggers that resemble spider legs. Luibl's rental fleet includes eight such machines from CTE and Teupen with 13.00 to 39.50 m working height.

Which spider lift has the largest outreach?

The Teupen LEO30Tplus has the largest outreach in the fleet at 17.00 m, with 30 m working height and 400 kg platform capacity. For access narrower than 1 m, the CTE TRACCESS 270 is the alternative: 0.78 m wide, 27 m working height and 14 m outreach.

Which spider lift carries 400 kg in the platform?

Three models in the Luibl rental fleet: the Teupen LEO30Tplus (30.00 m), the LEO35Tplus (35.00 m) and the LEO40GTX (39.50 m working height). The CTE TRACCESS models carry 200 to 250 kg, but are from 0.78 m wide and fit through narrow access routes.

Do the spider lifts have a drive with zero local emissions for indoor use?

Almost all our spider lifts are equipped with a bi-energy drive. This means: outdoors you use the powerful diesel or petrol engine. Indoors you switch to the 230 V mains electric drive or the integrated battery. This lets you work completely without exhaust fumes and quietly, ideal for hospitals, schools or churches.

Do I need a special operator licence for spider lifts?

Yes, safe operation requires operator training in line with applicable Czech safety rules and authorisation by the employer. We recommend IPAF training (category 1b). On handover we brief your operators on site.

Request a quote for a spider lift

Send us the working height, the lateral distance to the working point, access width, ground conditions, site location and rental period via our contact form - you will receive a binding quote at short notice.
