When obstacles need to be bridged, awkward areas reached or working heights above 20 metres are required, the articulating boom lift is the machine of choice. Luibl Rental & Sales rents articulating boom lifts with working heights from 10 to over 48 metres - available with electric, diesel and hybrid drive, delivered by our own low-loader from Passau throughout the Czech Republic. On site you will also hear the same machine called an articulated boom, knuckle boom lift or articulating telescopic platform - all refer to the aerial work platform with an articulated boom discussed here.

An articulating boom lift combines two principles: the jointed articulated boom with a telescopic boom for extra reach. The result is the so-called up-and-over effect: the basket is first raised vertically, then tilted over an obstacle and finally extended telescopically - positioned precisely at the target point. This makes the articulating boom lift the first choice for pipelines, building projections, industrial racking or structures that telescopic boom lifts or scissor lifts cannot get past. It is this articulated boom that gives the platform its name - articulating boom lift rental is one of the most requested areas of access equipment at Luibl.

Telescopic boom lifts work with a straight boom and are ideal for long, straight reaches on open ground. Articulating boom lifts are the right choice as soon as obstacles are in the way or the work area has to be approached with a lateral offset. They can reach the same working point from different angles - a clear advantage for facade work or in cramped industrial halls. For purely vertical work on level ground, scissor lifts are often the more cost-effective alternative.

Within this design, four factors determine the right machine:

1. How high and how far to the side? With this design, outreach often matters more than working height alone - it determines how far from the set-up position you can work without repositioning the machine. The more weight in the basket, the lower the permissible outreach.

2. Indoors or outdoors? For halls, production areas and noise-sensitive environments, the electric articulating boom lift is the choice - no local emissions and quiet. Outdoors and on unpaved ground, the diesel version with all-wheel drive takes over.

3. Do conditions change during the project? Then the hybrid articulating boom lift combines both: diesel for travelling on rough terrain, electric for emission-free work in the hall.

4. Do you need the articulated boom at all? If the working point is freely accessible from below, a scissor lift is usually the more cost-effective solution. If only straight reach at great height matters, the telescopic boom lift is the faster machine.

Machines in this class reach dead weights of up to 21 tonnes. So clarify access, unloading space and the permissible point load at the set-up location in advance - this prevents the most common cause of delays on site.

Luibl Rental relies on machines from Genie, JLG, Manitou, Magni and Niftylift. The rental fleet covers working heights from 10 to 48.15 metres and basket loads from 200 to 450 kg.

Electric articulating boom lifts for indoor applications

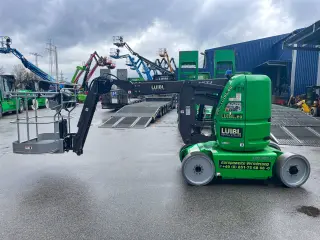

Electric platforms operate quietly with no local emissions - ideal for factories, logistics centres or public buildings. Non-marking tyres protect sensitive floors. Typical models: Manitou 120 AETJ-C 3D (11.95 m), Manitou 200 ATJ e (20.00 m), Genie Z40/23 N RJ (14.32 m).

Diesel articulating boom lifts for difficult terrain

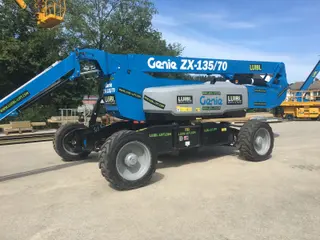

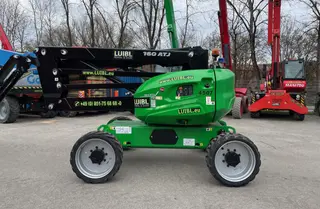

Diesel models with 4x4 all-wheel drive and oscillating axle handle gradients of up to 45% and difficult ground. Typical models: Manitou 160 ATJ (16.02 m), Genie ZX-135/70 (43.15 m), JLG 1500AJP (48.15 m, 450 kg basket load).

Hybrid articulating boom lifts for flexible use

Hybrid models combine electric and diesel drive - usable indoors and outdoors without conversion. Typical models: Niftylift HR 21 Hybrid (20.80 m), Niftylift HR 28 Hybrid (28.00 m), Genie Z60/37FE (20.16 m).

Working height alone says little about an articulating boom lift. What matters is the interplay of working height, outreach and permissible basket load. The table shows a selection from our rental fleet - from the compact hall machine to the largest articulating boom lift we offer.

How to read the values:

• Working height is the platform height plus 2 metres - the height at which a person standing in the basket works.
• Outreach is the maximum reach according to the manufacturer. It is usually not achieved at full height; what counts for your working point is the reach diagram of the specific model.
• Basket load covers everything in the basket: people, tools and material combined.

Within the same height class, the machines differ considerably. At around 20 metres working height, outreach ranges from 11.15 m (Genie Z60/37FE) to 13.00 m (Niftylift HR 21 Hybrid). If you need to lift more than 250 kg, you will end up with the Genie Z45FE (300 kg), the Niftylift HR 28 Hybrid (280 kg) or the JLG 1500AJP (450 kg).

The articulating boom lift has the advantage whenever the machine cannot stand directly below the working point. Typical scenarios:

Facade and building envelope

Canopies, balconies, bay windows or planting in front of the building prevent a platform from driving straight up to the facade. The articulated boom reaches over these obstacles and brings the basket close to the wall - for facade installation, window connections, sealing, cleaning or refurbishment. Where scaffolding is not worthwhile for short sections of work, the articulating boom lift is often the faster and more economical solution.

Plant engineering and industry

Pipe bridges, cable routes, ventilation ducts and machines stand close together in production halls. Here it matters that the basket can be guided over and between plant components. Electric and hybrid models operate with no local emissions, non-marking tyres protect the hall floor - important for maintenance, conversion and installation during ongoing operations.

Steel construction, hall and stadium construction

When installing roof beams, grandstand structures or lighting and sound equipment, great working heights meet lateral offset. On unpaved sites, diesel models with all-wheel drive take over; on the finished hall floor, the electric or hybrid version.

Maintenance and facility management

Inspection, cleaning and repair of roofs, gutters, lighting and building services often take place in courtyards or narrow access routes. This is where compact electric machines from 10.89 m working height show their strength.

Events and trade fairs

For setting up and dismantling rigging, lighting and stage equipment in halls, quiet, emission-free electric models are the usual choice.

A typical industrial scenario shows how the selection works in practice. It is an example of job planning, not a specific customer case.

The starting point: On a pipe bridge at a height of 14 metres, brackets and insulation are to be replaced. The pipe bridge runs over an aisle, with plant components on the left and right. The machine can only be set up about seven metres to the side. Two people work with hand tools, and the hall remains in operation.

The selection in four steps:

1. Height: 14 m working point plus a reserve - so the class from around 16 m working height comes into question.
2. Outreach: A good seven metres of offset at 14 m height rules out the compact hall machines. Whether a model can cover the distance at this height is only shown by the reach diagram - maximum reach usually does not apply at full height.
3. Basket load: Two people with tools need a basket load well above 200 kg.
4. Environment: hall in ongoing operation - so electric or hybrid with non-marking tyres.

The result: An electric articulating boom lift in the 17 m class comes into question, such as the Manitou 170 AETJ-L (16.90 m working height, 9.43 m outreach, 230 kg basket load); with more reserve in height and offset, the Manitou 200 ATJ e (20.00 m, 11.57 m). If heavy components also have to go into the basket, the choice shifts to a model with a higher basket load. The Genie Z45FE carries 300 kg, but at 6.94 m it does not reach far enough to the side - then the set-up position must move closer to the pipe bridge or a larger machine is needed.

Clarified before delivery: access and clearance height, load-bearing capacity of the hall floor at the set-up location and cordoning off of the work area. With this information you will receive a quote that fits the task - not just the working height.

Luibl Rental has its own low-loader transport fleet. That means: no dependence on third-party hauliers, direct coordination of delivery date and set-up location, and on-schedule delivery to your site. Transporting articulating boom lifts with dead weights of up to 21 tonnes requires specialised equipment - that is standard at Luibl. Whether short-term or long-term rental - we deliver by low-loader from Passau throughout the Czech Republic.

Operating aerial work platforms requires the required operator qualification in line with applicable Czech safety rules and CSN EN standards. Operators should be instructed in theory and practice in handling the specific machine. All Luibl machines leave the depot after a periodic inspection under Government Regulation No. 378/2001 Coll. and come with complete technical documentation. We provide operator briefing on handover.

Articulating boom lifts are technically more complex than purely vertical platforms - so the rental price range is correspondingly wider. These factors determine it:

• Working height and outreach: From the 12 m electric machine for the hall to the 48 m diesel articulating boom lift outdoors, there are several classes. Outreach often matters more than height alone.
• Drive: electric for emission-free indoor work, diesel with all-wheel drive for rough terrain, hybrid for jobs that demand both.
• Rental period: Daily, weekly and monthly rates are tiered; for longer projects, long-term rental with its own terms pays off.
• Transport: Machines in this class reach dead weights of up to 21 tonnes and need specialised transport equipment. Delivery is by our own low-loader fleet from Passau and is shown separately from the machine rental.
• Additional services: Machinery breakdown insurance and on-site briefing are calculated separately.

Included are an inspected machine with a valid periodic inspection under Government Regulation No. 378/2001 Coll., maintenance during the rental period and technical advice on selection. With details of working height, required outreach, ground conditions, rental period and site location, you will receive an itemised quote.
