Pallet stacker rental - efficient warehouse logistics in the tightest spaces

Narrow aisles, low hall ceilings, emission-sensitive interiors: this is where a pallet stacker comes in, where a conventional forklift would be too big or too loud. At Luibl you rent electric pallet stackers with lithium-ion batteries, load capacities from 1,000 to 2,000 kg and lift heights from 3 to over 5 metres. Delivered by our own low-loader fleet from Passau throughout the Czech Republic.

The pallet stacker closes the gap between the simple pallet truck (purely horizontal transport) and the conventional electric forklift. It lifts loads up to mast height - without local emissions, manoeuvrable and with a much smaller footprint than a ride-on forklift.

The specific advantages for warehousing and logistics:

• Indoor operation without local emissions: The electric drive with LiFePO4 technology works without exhaust fumes - a must in food logistics, pharmaceutical production, retail and in closed halls without heavy ventilation.

• Manoeuvrability in narrow aisles: The compact dimensions allow work in racking aisles where a ride-on forklift has no room to manoeuvre. Decisive in high-bay warehouses and with dense block stacking.

• Low noise level: The electric drive is quiet. This makes the pallet stacker suitable for retail floors during opening hours, residential areas for night deliveries or hospital logistics.

• Required operator qualification under Czech rules: For pedestrian-operated trucks such as the pallet stacker, documented operator training in line with occupational safety rules is decisive. Whether a full forklift operator licence is required depends on the applicable rules - more on this below.

• Fast availability for peak demand: Rental absorbs seasonal peaks. Christmas trading in retail, stocktaking, production changeovers or short-term logistics projects - we deliver from our rental fleet at short notice.

Choosing a pallet stacker is usually a decision against the space requirements and emissions of a ride-on forklift - while offering more lift than a pallet truck.

Luibl offers electric pallet stackers with load capacities from 1,000 kg to 2,000 kg and lift heights from 3 to over 5 metres. The focus is on modern machines with lithium-ion batteries - these replace older lead-acid batteries with their long charging times and the maintenance effort of water-cooled cells.

Standard pallet stackers for conventional pallet handling

For level hall floors and typical pallet logistics (Euro pallets, mesh boxes), the standard pallet stacker is the first choice. Load capacity 1,000 to 1,600 kg, lift height 3 to 3.5 metres. It is operated via the tiller - ergonomically shaped, with fingertip controls for lifting, lowering and direction of travel.

Typical applications: intermediate storage in production environments, order picking in warehouses, loading and unloading small vans at deck height.

Pallet stackers with initial lift for ramps and uneven surfaces

On loading ramps, at thresholds of loading doors or on slightly uneven outdoor surfaces, a standard pallet stacker is not always enough. Models with initial lift additionally raise the load rollers on the fork carriage before the mast comes into action. The pallet is thus lifted off the ground along its entire length - the machine overcomes thresholds and ramp edges without the load rollers touching down.

That is the decisive difference from the standard machine: where the working environment is not completely level, initial lift makes the job possible in the first place.

Electric pallet stackers up to 2 tonnes load capacity

For heavier loads and multi-shift operation, Luibl offers electric pallet stackers with up to 2,000 kg load capacity and lift heights of over 5 metres. These machines work with a triplex mast and full free lift - important in halls with limited ceiling height. The lithium-ion battery allows opportunity charging during breaks; the machine stays ready for use in shift operation without a battery change.

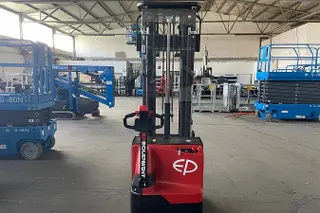

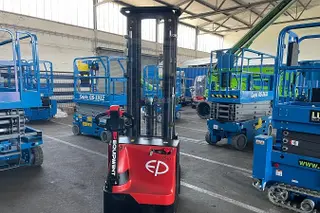

One example model from the rental fleet is the EP ES series - lithium-ion based, with an integrated charger and designed for continuous use in intralogistics.

Four parameters determine which model suits your application.

Load capacity and load centre: The rated capacity always applies to a defined load centre - usually 500 or 600 mm. With longer or asymmetrical loads, the residual capacity decreases. The load chart on the machine shows the exact values for every lift height and load centre position. Particularly relevant: at maximum lift height, the permissible load falls well below the rated value - an aspect the operator must take into account when storing in high racking.

Lift height and mast type: Three designs are common on the market. Simplex (single mast) allows lift heights of up to approx. 3 m without telescoping. Duplex (two-stage telescopic mast, partly with free lift) reaches 3.5 to 4.5 m. Triplex (three-stage mast with full free lift) lifts to over 5 m - with the same lowered height. Free lift is the distance the fork carriage can travel upwards without the mast itself extending - decisive in halls with low doors or ceiling beams.

Lowered height: Often forgotten, but it determines whether the machine fits through doors and under ceiling beams. With duplex and triplex masts with free lift, the lowered height stays manageable even with a high lift height. Before renting: measure the door height at the site.

Turning radius and aisle width: Pallet stackers are guided by the operator on foot (pedestrian-operated). The turning radius is well below that of a ride-on forklift - allowing working aisles from around 2.2 m wide. For even narrower aisles there are narrow-aisle versions of the three-way stacker type, available from Luibl on request.

Battery and charging: Lithium-ion batteries are standard at Luibl. Advantages: opportunity charging without loss of capacity, no gassing (no separate charging room required), longer service life than lead-acid. The integrated charger works on standard 230 V mains power - no three-phase installation required. Depending on the workload, a full charge lasts for a full shift; opportunity charging during breaks extends the operating time considerably.

• Retail and DIY stores: restocking shelves during opening hours, quietly and without local emissions. Pallet stackers with initial lift overcome door thresholds between the stockroom and the sales floor.

• Food and beverage logistics: HACCP-compliant warehouse logistics with fully electric machines. Diesel forklifts are not permitted here.

• Pharmaceutical and cleanroom logistics: operation without local emissions and a low noise level are a must here.

• Production and intermediate storage: supplying production lines, returning empty pallets, putting away and retrieving goods in the adjacent racking area.

• Order picking and dispatch: combined with pallet trucks, the pallet stacker forms the backbone of intralogistics in e-commerce and distribution.

• Unloading trucks in city centres: Where there is no room for a ride-on forklift to manoeuvre, the pallet stacker unloads directly from the truck into the shop - a classic application in central Prague or Brno, but equally in the historic centre of Olomouc.

Luibl operates its own low-loader fleet and delivers pallet stackers from Passau to the Czech Republic, Germany, Austria, Switzerland, Poland, Italy, Hungary and other European countries. To the main economic areas (Prague, Brno, Ostrava, Plzen and surroundings) we deliver at short notice.

What the rental includes:

• Periodic inspection under Government Regulation No. 378/2001 Coll.: All machines are inspected on handover. The inspection sticker is clearly visible. For long-term rentals, Luibl renews the inspection during the rental period.

• Integrated charger: The charger is built into the truck and works from a standard 230 V socket. No special installation is required on site.

• Handover report: written documentation of the machine's condition on delivery and return - protects both parties in the event of damage.

• Technician service on request: In the event of technical faults or operating questions, a service technician comes out promptly. Included in the service contract for long-term rentals.

• Young rental fleet: The machines are generally less than 3 to 5 years old. That means current technology (LiFePO4 battery, ergonomic tiller, modern safety features) and a low failure rate.

Which model suits your application - standard or initial lift, 1 t or 2 t class, simplex or triplex mast - depends on four factors: load capacity, required lift height, overall height at the site and floor conditions. A consultation with Luibl clarifies these points in a few minutes and brings the right machine to your site.
