Heavy-duty telehandler rental from 7.2 to 33 t

Heavy-duty telehandlers are used where heavy machinery and components need to be moved safely and positioned precisely. Typical applications include machinery relocation, plant and steel construction, and port and industrial logistics. Besides the load weight, the key factors for choosing the right model are the load centre, lift height, reach, attachment, ground conditions and available space. Luibl supports the technical machine selection and organises delivery with its own low-loader fleet - from Passau throughout the Czech Republic.

While standard telehandlers usually reach their capacity limit at a load capacity of 5 to 6 tonnes, Luibl Rental offers heavy-duty telehandlers with load capacities from 7,200 to 33,000 kg. We deliver with our own low-loaders from Passau throughout the Czech Republic. Luibl has the following heavy-duty telehandlers available for rent - all serviced, fully fuelled and with a current inspection certificate:

• Merlo P. 72.10 - 7,200 kg | 9.40 m lift height | 5.20 m reach | 5.35 x 2.33 x 2.44 m
• Merlo P. 120.10 HM - 12,000 kg | 9.80 m lift height | 5.30 m reach
• Manitou MHT 10120 - 12,000 kg | 9.62 m lift height | 5.35 m reach | 5.95 x 2.50 x 2.90 m
• Manitou MHT 10160 - 16,000 kg | 9.60 m lift height | 5.20 m reach | 6.15 x 2.48 x 2.99 m

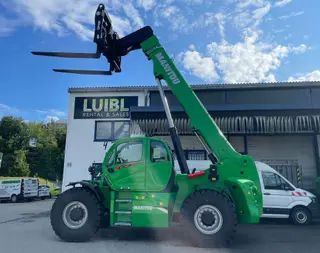

• Manitou MHT 10200 ST5 - 19,999 kg | 9.70 m lift height | 5.40 m reach | 6.70 x 2.58 x 2.98 m
• Manitou MHT 11250 ST5 - 24,999 kg | 10.60 m lift height | 6.00 m reach

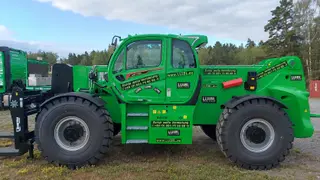

• Manitou MHT 12330 - 33,000 kg | 11.92 m lift height | 6.60 m reach | 8.37 x 2.98 x 3.60

All machines leave our depot in Passau after a load test of the load moment limiter (LMB). Inspection certificates, handover reports and technical data sheets on ground pressure are available on request.

Not every heavy-lift job takes place on a level hall floor. In bridge construction, mining or when handling wind turbine components, the ground is often the biggest challenge for stability. The Manitou MHT series at Luibl Rental features permanent all-wheel drive, three steering modes and high ground clearance, and moves loads of up to 33 tonnes even on unpaved terrain.

Hydrostatic power transmission ensures smooth starts under full load - an important factor when manoeuvring heavy loads to the centimetre on slopes.

The Merlo P models cover the lower load range of the heavy-duty fleet (7,200-12,000 kg) and, thanks to their more compact dimensions, are suited to applications with limited space, such as factory halls or machinery relocations.

Applications for heavy-duty telehandlers

• Heavy industry and plant assembly: positioning transformers, presses and reactor parts precisely

• Wind power and energy projects: installing nacelles, rotor blades and tower segments on narrow paths around the foundations

• Bridge and civil engineering: placing precast elements and steel girders - often without an additional mobile crane

• Port logistics and handling: moving heavy steel segments on confined sites without fixed crane runways

• Tandem lifts: two coordinated heavy-duty telehandlers - for loads that one machine cannot handle alone

In a port logistics project, steel segments weighing 20 tonnes had to be moved. Instead of setting up a 300-tonne mobile crane, we opted for the coordinated use of two heavy-duty telehandlers in a tandem lift. Thanks to radio remote control, a single banksman could keep both machines in view. The result: cost savings compared with a crane job, and both telehandlers were available for further tasks on site once the load had been set down.

With loads above 10,000 kg, components and ground are subject to high stress. On request, we supply the technical data sheet on ground pressure and check the outrigger loads with you in advance. Operator obligations in line with applicable Czech safety rules and CSN EN standards:

• Operators must hold the required operator qualification and be authorised by the operating company

• Check the load chart before every lift - essential for heavy loads

• Risk assessment including ground inspection before commissioning (load-bearing ground: asphalt, concrete or heavily compacted gravel; on soft ground, consider a ground mat solution)

• On public roads: clarify road approval in advance under Act No. 361/2000 Coll. (road traffic)

Heavy-duty telehandlers with dead weights of up to 49 tonnes require specialised transport. Luibl has its own low-loader fleet designed for transporting this class of machine - including coordination of the necessary special transport permits:

• Delivery on schedule directly to the construction site or company premises

• Collection after the rental period included - no third-party haulier required

• Delivered by low-loader from Passau throughout the Czech Republic

• We coordinate permits for oversize and heavy transports

Do you need a heavy-duty telehandler for your project? Send us your enquiry stating the required load capacity, rental period and site location. Luibl will prepare a binding quote including transport costs at short notice.
