Heavy-duty forklift rental - powerhouses for industry and material handling

When loads over 8 tonnes need to be moved regularly, a standard counterbalance forklift is no longer enough. Heavy-duty forklifts have reinforced masts, more powerful hydraulics and greater stability - designed for steel construction, precast concrete elements, machine components and container handling. At Luibl you can rent heavy-duty forklifts from Kalmar and Hyundai with load capacities from 8 to 33 tonnes. Delivered with our own low-loader fleet from Passau throughout the Czech Republic.

The threshold for a heavy-duty forklift lies where standard industrial forklifts (usually up to 5 tonnes load capacity) reach their rated capacity. Projects in the metal industry, precast concrete production, steel processing or port handling regularly work with loads between 8 and 18 tonnes - here a heavy-duty forklift is a must, not an option.

Typical applications:

• Metalworking and steel construction: Loading steel beams, coils, prefabricated parts and semi-finished products. With these goods the load centre is often far in front of the fork tips - which reduces the residual capacity and requires an appropriate rated capacity.

• Precast concrete and building materials industry: Transporting precast concrete elements, natural stone blocks and heavy pallets. Often on unpaved plant grounds with slopes and access ramps.

• Ports and handling terminals: Loading and unloading trucks, wagons and containers. Here, heavy-duty forklifts often replace the reach stacker in the second handling row.

• Machine tool manufacturing and heavy industry: In-plant transport of machine assemblies, tool moulds and press parts. Work often takes place on hall floors with a defined load-bearing capacity.

• Recycling and timber industry: Handling steel scrap, logs and paper bales. High stress from continuous operation and rough loads.

The decision for a heavy-duty forklift does not depend on weight alone. The load centre, lift height, fork length and the floor load capacity at the job site also determine which machine is right.

In the heavy-duty category, Luibl covers the 8 t, 10 t, 16 t and 18 t load capacity classes with six specific models. The focus is on Kalmar - the global benchmark in the heavy-duty forklift segment - complemented by Hyundai and EP.

The entry class: 8 to 10 tonnes

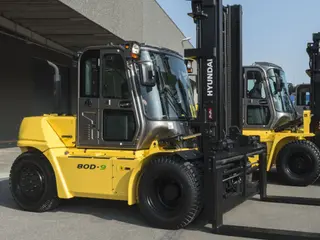

Hyundai 80D-9 (8 t diesel): The diesel drive is the classic choice for outdoor areas and mixed hall/yard operation. With forks from 6,000 mm and a rated capacity of 8 tonnes, the Hyundai 80D-9 covers typical heavy-duty tasks in steel trading and at recycling yards.

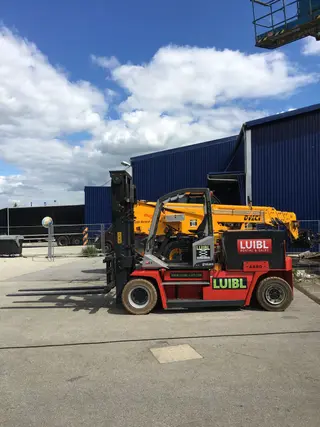

Kalmar ECF 80-9 (8 t electric): For indoor operation with emission requirements - for example in the food industry, pharmaceutical production or paper processing. The electric drive produces no local emissions and is significantly quieter than comparable diesel machines. 8 tonnes load capacity at 3,450 mm lift height.

EP EFL 1002 (10 t electric): The next step in the electric variant with 10 tonnes load capacity and 5,000 mm lift height. Demand for electric heavy-duty forklifts is rising significantly - both for emission reasons and because of lower operating costs in continuous use.

The heavyweights: 16 to 33 tonnes

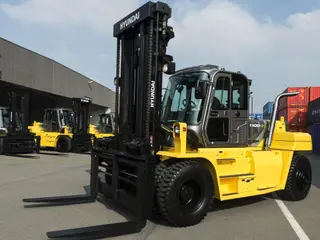

Hyundai 160D-9 (16 t diesel): 16 tonnes load capacity at 4,500 mm lift height. Typically used for in-plant handling, loading containers or heavy pallets outdoors. Robust diesel drive technology designed for continuous operation.

Kalmar DCG 160-12T (16 t diesel): Kalmar is regarded as the world market leader in heavy-duty forklifts. The DCG 160-12T works with 16 tonnes load capacity at 4,500 mm lift height and a load centre of 1,200 mm - relevant for precast concrete elements and large-format loads. A rear-view camera, ergonomic workstation and optimised cylinder arrangement improve forward visibility.

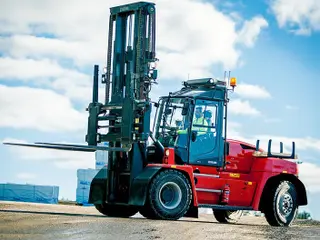

Kalmar DCG 180-6T (18 t diesel): The top rental model: 18 tonnes at 4,500 mm lift height, load centre 600 mm. The shorter load centre shows that this machine is designed for compact, very heavy loads - steel blocks, press moulds, tools. Despite the high rated capacity, the dimensions remain manageable; the turning circle allows use in factory halls with normal traffic areas.

For even higher loads: Luibl also rents the Manitou MHT 10200 heavy-duty telehandler with 20 tonnes load capacity. Formally, this machine is not a counterbalance forklift but belongs to the telehandler category - in return it reaches greater lift heights and more outreach. The MHT is the first choice when classic counterbalance forklift geometry is not enough.

Choosing a heavy-duty forklift comes down to five technical parameters. Anyone who does not clarify them carefully risks a machine that is either oversized or - more dangerously - undersized at the job site.

Rated capacity and load centre: The load capacity stated on the rating plate always applies to a defined load centre distance - usually 600 mm or 1,200 mm. If the load is picked up further forward, the residual capacity drops, sometimes drastically. Precast concrete elements, steel plates and bulky machine assemblies often have significantly longer load centres. What counts here is the load chart of the specific machine - not the capacity figure in the brochure.

Lift height and overall height: In addition to the actual lift height (maximum fork height above the floor), the overall height of the retracted mast is relevant. Door heights, roof structures and passages between production areas define the upper limit. A free-lift mast allows lifting without mast extension - important in halls with limited ceiling height.

Fork length: Standard forks on 8 t forklifts are 1,200-1,500 mm, on 16-18 t models 1,800-2,500 mm. Longer forks are needed for coils, large pallets and long goods. Luibl offers suitable accessories for rent: fork extensions, coil rams, load backrests.

Drive type: Diesel delivers torque and continuous power for outdoor use. Electric is a must in emission-sensitive environments and shows its strengths in multi-shift indoor operation. For mixed operation, the industry also offers bi-energy models - the Luibl heavy-duty portfolio currently includes diesel and electric variants.

Floor conditions: An 18-tonner weighs around 25 to 30 tonnes even when empty. Then there is the load. The floor load capacity at the job site - hall, ramp, outdoor area - must be checked before delivery. Luibl helps with the assessment; the limit values can be found in the machine data sheet under point load per wheel.

Transporting a heavy-duty forklift is a logistics project in itself. With dead weights of 15 to over 25 tonnes and widths over 2.5 metres, only heavy-duty low-loaders are an option - often with a special permit for the transport route.

Luibl operates its own low-loader fleet, designed precisely for these requirements. This makes delivery independent of external hauliers and reduces the risk of postponed dates. For the rental period, this means plannable delivery dates, defined collection and - if necessary - fast replacement in the event of technical faults.

The delivery area covers: Czech Republic, Germany, Austria, Switzerland, Poland, Italy, Hungary and other European countries. For locations with industrial connections - for example the industrial areas around Prague, Plzen, Mlada Boleslav or Ostrava - we deliver by low-loader from Passau at short notice.

During the rental:

• On-site technical support: If required, Luibl sends a service technician directly to the construction site or plant. This minimises downtime caused by operating errors or technical problems.

• Long-term rental terms: For projects lasting several months, periodic inspection under Government Regulation No. 378/2001 Coll. and maintenance are included in the contract.

• One point of contact: For heavy-duty forklifts, telehandlers, aerial work platforms and standard forklifts - no parallel contracts with different rental companies.

As industrial trucks, heavy-duty forklifts are subject to occupational safety rules (Act No. 309/2006 Coll.) and Government Regulation No. 378/2001 Coll. This results in specific obligations for operators and hirers.

Periodic inspection under Government Regulation No. 378/2001 Coll.: All Luibl rental machines are inspected in accordance with FEM 4.004 - focusing on the hydraulic system, mast, lifting frame, brakes and safety devices. The inspection sticker is clearly visible on every machine. For long-term rentals, Luibl renews the inspection during the rental period.

Daily check by the driver: A visual and functional check is required before every shift - tyres, oil level, hydraulic lines, lighting, warning devices. Luibl provides the corresponding checklist on handover.

Briefing on handover: For complex machines - especially from 16 tonnes load capacity - Luibl staff provide a personal briefing on request. This covers the load chart, operating concept, safety devices and the specifics of the particular model.

Workplace risk assessment: Under the Labour Code (No. 262/2006 Coll.), responsibility for the risk assessment lies with the operator of the job site. The rental company provides the technical documentation; the job-specific assessment - for example of floor load capacity, travel routes and load pick-up - must be carried out by the company itself.

The machine may only be operated by drivers with the required operator qualification (forklift operator licence). On handover, Luibl provides an operator briefing.

Choosing the right heavy-duty forklift is not a catalogue click but a planning question: load capacity, load centre, lift height, drive, floor conditions and rental period all interact. A consultation with Luibl brings the right machine to the job site - including low-loader logistics, periodic inspection under Government Regulation No. 378/2001 Coll. and technical support throughout the rental period.
