Kalmar DCG330-12

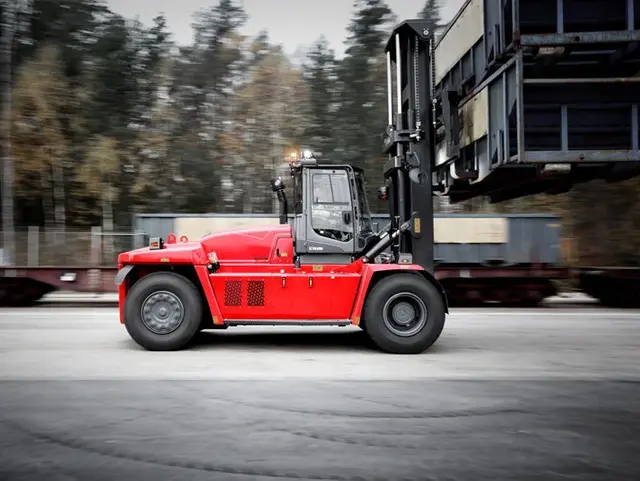

Kalmar DCG330 Hire – 33 t Heavy-Duty Forklift with 4625 mm Triplex Mast
The Kalmar DCG330 is a powerful diesel heavy-duty forklift in the 33-tonne segment. With the triplex mast (4,625 mm lift height), the DCG330 reaches lift heights that cannot be achieved with the standard duplex mast – decisive for multi-level storage and second-row container stacking. Luibl Rental hires out the Kalmar DCG330 with triplex mast at short notice, inspected and including Europe-wide low-loader transport.
Technical Specifications – Kalmar DCG330-12 Triplex 4625 mm
| Parameter | Value |
|---|---|
| Load capacity (rated capacity) | 33,000 kg |
| Load centre distance | 1,200 mm |
| Mast type | Triplex with full free lift |
| Lift height | 4,625 mm |
| Free lift height | 1,625 mm |
| Mast height lowered | 3,680 mm |
| Dead weight | 41,500 kg |
| Overall length (without forks) | 6,925 mm |
| Overall width | 3,430 mm |
| Wheelbase | 4,750 mm |
| Ground clearance (centre) | 300 mm |
| Cab height | 3,415 mm |
| Engine | Cummins QSB6.7 turbo intercooler |
| Engine output | 168 kW at 2,200 rpm, peak 188 kW at 1,900 rpm |
| Displacement | 6.686 l |
| Transmission | Hydrodynamic powershift transmission, 3 / 3 gears |
| Drive | Diesel |
| Tyres | Pneumatic / pneumatic, front and rear 16.00×25 |
| Fork length (standard) | 2,400 mm |
4625 mm Triplex Mast: What It Means for Your Operation
The difference between a duplex and a triplex mast is more than a lift height figure. The triplex mast has three mast sections that extend independently of each other, with concrete operational benefits:
- Higher stacking: With a lift height of 4,625 mm, loads can be stacked higher. Relevant for steel coil storage and two-tier container stacking.
- Free lift enables low entry heights: The integrated free lift raises the forks to free lift height without extending the mast. This allows lifting in halls the DCG330 can just about enter without the mast exceeding the ceiling height.
- Stable load curve: The three-stage kinematics distribute the lifting forces more evenly than a two-stage duplex mast – relevant for safety with 33-tonne loads at full lift height.
Applications by Industry
Steel Trading and Metalworking
The DCG330 moves steel coils, sheet metal bundles, steel plates and long profiles with a rated capacity of 33 tonnes. The load chart is designed for a reduced load centre distance. With typical coil dimensions up to 3,000 mm in length, the full rated capacity remains usable.
Precast Concrete and Building Materials Industry
Transport of foundations, wall and floor elements, large paving stones and block steps on factory premises and construction sites. For outdoor areas with soft ground, a ground bearing capacity check before use is recommended (dead weight of the DCG330 approx. 41.5 tonnes).
Container Handling and Port Hinterland Logistics
The DCG330 is suitable for handling loaded 20' containers (gross weight up to 24 t) and heavy 40' flat rack loads. The triplex mast allows stacking up to two tiers high.
Mechanical Engineering and Heavy Industry
In-plant transport of press tools, machine frames, moulds and gearbox assemblies. The fully automatic transmission control reduces operator strain in multi-shift operation.
Recycling and Waste Management
Handling of scrap bundles, bales and heterogeneous bulk material. The robust design of the DCG330 – diesel engine with particulate filter, low-maintenance hydraulics – is suited to sites with high dust levels.
Hire or Buy? When Hiring Pays Off
- Projects with a limited time window: Repairs, assembly, plant relocation – when the 33-tonner is only needed for weeks or months.
- Downtime cover: If your own forklift fails, Luibl Rental delivers the replacement forklift by low-loader – at short notice by arrangement.
- Demand peaks: Seasonal high-load phases, trade fair preparation, plant shutdowns. Hiring scales with demand without permanent maintenance and depreciation costs.
Luibl Rental Hire Service – What Is Included
- Serviced and inspected machine on handover
- Low-loader transport by Luibl Rental's own vehicle fleet (no external haulier)
- Technical familiarisation service on request at handover
- Technical support during the hire period
- Europe-wide delivery: we organise delivery and transport by arrangement
FAQ – Frequently Asked Questions about Kalmar DCG330 Hire
How much does it cost to hire the Kalmar DCG330 per month?
The hire price depends on the hire period, location and availability. Luibl Rental prepares an individual quote promptly.
How heavy is the Kalmar DCG330 and which low-loader do I need?
The dead weight is approx. 41,500 kg. Transport is carried out by heavy-duty low-loader. Luibl Rental takes care of transport planning.
Which fork length is standard and which extensions are possible?
Standard: 2,400 mm. Extensions to 3,500–4,000 mm are possible. Luibl Rental offers fork accessories (extensions, rams, load backrests) as a hire option.
Is the Kalmar DCG330 suitable for indoor use?
The diesel engine is only suitable indoors with sufficient ventilation.
How quickly can Luibl Rental deliver the DCG330?
Delivery takes place at short notice depending on availability and arrangement. For urgent requests due to machine failure, Luibl Rental checks delivery options promptly.
