Rent PB aerial work platforms - maximum height in the tightest space

If you need to reach a working height of 22 metres in a high-bay warehouse but only have an aisle width of 1.40 metres, standard machines hit a physical limit. PB Lifttechnik treated this limit as a design task: build narrower, lift higher, carry more. The result is scissor lifts that have no direct competitor in Central Europe. Luibl delivers PB rental machines by special low-loader from Passau directly to the site - inspected under Government Regulation No. 378/2001 Coll., ready for use, compliant with CSN EN 280.

PB Lifttechnik is a German company - development, design and production take place in Germany. This is not a marketing attribute but has a direct effect on the machine: the patented PB scissor design is engineered for minimal deflection at maximum lift height. At 22 metres working height, every millimetre of deflection at the platform edge is a safety and precision problem. PB solves this with a scissor geometry of increased stiffness that provides a stable working position even at extreme extension.

The unique features of the S series in figures:

• Track width from 1.22 m - narrower than the width of a Euro pallet

• Working heights up to 22 m and beyond

• Load capacities up to 900 kg - several people and heavy tools at the same time

• Electric drive - zero local emissions, quiet, designed for continuous operation in enclosed halls

In a modern logistics centre near Leipzig, the PB S225-12ES enabled maintenance work at a height of 22 metres with an aisle width of only 1.40 metres. Conventional scissor lifts could not have met this combination of aisle width and working height - the project would have depended on a climbing solution or costly dismantling of racks.

The S series is the core product of the PB rental fleet at Luibl. All models share three features: electric drive, non-marking tyres and a platform with a pull-out extension that enlarges the working area without moving the machine.

PB S171-12ES:

• Working height: 17.1 m

• Platform width (retracted): 1.22 m

• Load capacity: up to 750 kg

• Platform extension: extends the working area sideways without repositioning the machine

• Application: electrical installations in production halls with existing racking. The combination of 17 m height and 1.22 m track width fits standard aisles without clearing the racks.

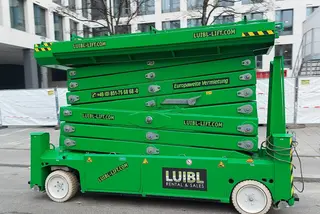

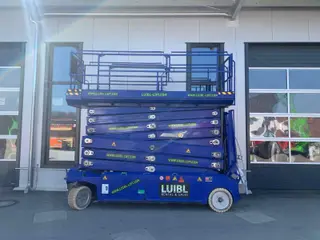

PB S225-12ES:

• Working height: 22.5 m

• Platform width (retracted): 1.22 m

• Load capacity: up to 900 kg

• Design feature: patented scissor geometry with increased stiffness for minimal deflection at maximum lift height

• Application: sprinkler system maintenance, ventilation cleaning and fire protection installation in high-bay warehouses of class 4+ (storage height over 20 m). The 900 kg load capacity allows spare parts, tools and two fitters to be carried in one lift.

Logistics rarely involves a single fitter with hand tools. Fire protection installations require pipe sections, fittings and installation tools on the platform. Sprinkler work at heights of 20+ metres means ladders, hoses and several specialists at the same time. In this context, a load capacity of 900 kg is not a reserve - it is an operational necessity.

PB S series models achieve these load capacities without increasing the track width. The vertical extension of the scissor transfers the load straight upwards, without lateral force components that would impair stability in narrow aisles. Automatic levelling ensures that the machine can be operated stably even on slightly uneven areas of the hall floor - expansion joints, drainage channels, slight gradients - without packing plates.

Three technical features make the PB rental solution concretely more economical than alternatives for logistics centres:

Compactness without sacrificing load capacity: Other narrow scissor lifts achieve the 1.22 m track width but reduce the load capacity to 450-500 kg in return. The PB S series keeps both - narrow-aisle capability and 900 kg load capacity - in one machine. Fewer lifts, shorter project duration.

Electric drive for shift work: PB lifts are designed for high cycle endurance. Battery capacity is designed for full working shifts - no unplanned charging stops during an ongoing fire protection installation. The electric motor runs with zero local emissions and quietly, which allows parallel operation alongside ongoing warehouse operations.

Platform extension without repositioning the machine: The pull-out platform extension enlarges the working area sideways without the machine having to be moved. In a narrow aisle, repositioning a platform at a lift height of 20+ metres costs time and adds safety effort. The extension replaces several position changes with a single lever movement.

The Luibl rental portfolio of the PB series covers the following height classes:

• 15 m - 17 m: For medium-sized warehouses, production halls, workshop ceilings. Models such as the PB S171-12ES are the narrowest available option with high load capacity in this class.

• 20 m - 22 m: For high-bay warehouses of the upper classes, cold stores with large clear heights, industrial halls in the automotive sector. The PB S225-12ES is the reference machine here.

• Over 22 m: On request - Luibl has access to special configurations of the PB series for special sites with extreme ceiling heights.

All models are tested and certified to CSN EN 280 (mobile elevating work platforms - design calculations, stability, construction). Valid proof of inspection under Government Regulation No. 378/2001 Coll. is supplied with every delivery.

Automatic levelling: The drive system detects floor unevenness and compensates for it without manual intervention by the operator. For hall floor areas with changing conditions - typical of logistics centres with vehicle traffic and expansion joints - this is an active safety function, not just a convenience.

Proportional control: Travel responds proportionally to lever position - a slow lever movement means slow travel, even when the battery is fully charged. In narrow aisles at 20 metres height, sensitive control is not optional equipment but safety-relevant. A machine without proportional control reacts too abruptly in such situations.

Non-marking tyres: PB S series models come with non-marking tyres as standard. Epoxy and polyurethane coatings on high-bay warehouse floors remain undamaged - no cleaning costs after the rental period, no queries about floor damage on return.

Battery capacity for full shifts: PB lifts are designed for multi-shift operation. Battery capacity allows a full 8-hour shift without intermediate charging, even with frequent lift cycles at great heights. For project work with a fixed completion date, this eliminates unplanned machine stops.

PB S series scissor lifts are among the special machines in the Luibl rental fleet that require direct delivery by special low-loader. Luibl coordinates delivery, unloading position and set-up location directly with the person responsible on site - no logistics coordination via third parties.

Request availability, delivery date and rental terms directly via the contact form: state the model, site location, aisle width on site and rental period. If you are unsure which model is right, our expert telephone advice is available - measuring the aisle width and clarifying the load requirements settle the choice of model within a few minutes.

We deliver to the Czech Republic, Germany, Austria, Switzerland, Poland, Italy, Hungary and other European countries.
