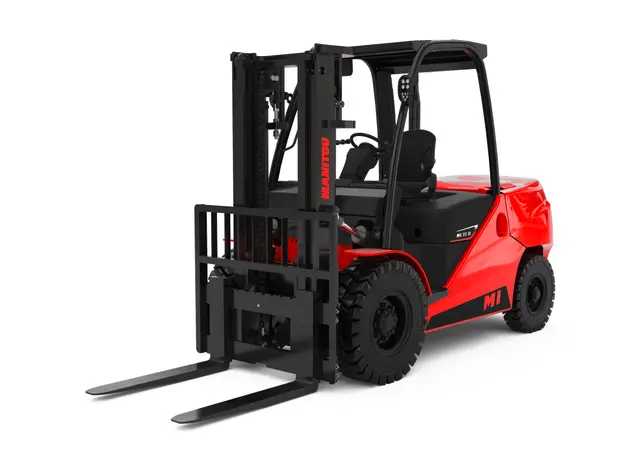

Manitou MI 50 Triplex 5000 mm




Technical data
- Load capacity: 5,000 kg
- Max. lift height: 5,000 mm
- Mast type: Triplex with free lift
- Tyres: superelastic solid rubber tyres
- Drive: diesel
- Transmission: torque converter powershift transmission
- Dead weight: 6,930 kg
- Load centre: 500 mm
- Standard equipment: side shift, load backrest, ergonomic operator station
Manitou MI 50 D – Triplex 5000 mm forklift hire
Five tonnes of load capacity, five metres of lift height, triplex mast with free lift – the Manitou MI 50 D is the industrial counterbalance forklift for heavy loads in warehouses, production plants and logistics centres. Where a 3.5-tonne truck is no longer sufficient and a rough-terrain forklift would be out of place, this model sets the right standard.
Area of application
The MI 50 D is an industrial counterbalance forklift – which means superelastic solid rubber tyres for level, paved floors. It is designed for halls, warehouse buildings, logistics centres and industrial yards, not for construction sites with unpaved ground.
Typical applications:
Serving heavy-duty racking with loads between 3.5 and 5 tonnes
Truck loading and unloading on paved outdoor areas
Industrial loading logistics, for example steel, paper, plastics or mechanical engineering
Pallet handling in production halls with long shifts
The combination of 5 tonnes of load capacity and the triplex mast allows lifting to 5 metres. The free lift makes this possible: the fork carriage rises before the mast extends – crucial in halls with limited ceiling height.
Why triplex with 5,000 mm?
A standard mast with the same lift height would protrude well above the supporting structure when extended. The triplex mast solves this problem with its three-stage design: the machine keeps a low mast height while the forks are already lifting high. This is not a theoretical advantage – in practice it determines whether a machine can be used in your hall at all.
For companies with racking heights between 4 and 5 metres and heavy unit loads, there are few alternatives that move this weight at this height safely and economically.
Engine and transmission
The diesel engine supplies the hydraulics reliably even under continuous load. The torque converter powershift transmission ensures smooth starts and precise entry into narrow racking aisles without abrupt load changes. This extends the service life of the machine and relieves the operator during long shifts.
Superelastic solid rubber tyres work without air pressure – no tyre failure, no pressure loss, lower maintenance than pneumatic tyres on smooth industrial floors.
Standard equipment
Integrated side shift: precise positioning of the load without repositioning at the rack location
Load backrest: protects the operator from unsecured or overhanging loads
Ergonomic operator station: adapted seat height, clearly arranged controls, easy entry and exit
Hydraulically controlled functions: sensitive lifting and tilting even with heavy loads
Hire from Luibl Rental
The Manitou MI 50 D – Triplex 5000 mm is available for hire from Luibl Rental. Delivery throughout Europe with our own fleet of vehicles. For longer-term projects, long-term hire terms including maintenance intervals are available.
Contact us directly with specific requirements – different fork lengths or additional attachments are available on request.
Request a quote now.
FAQ
What is the difference between the Manitou MI 50 D and the M50-4?
Both models lift 5,000 kg, but for different environments. The MI 50 D is an industrial counterbalance forklift on solid rubber tyres – designed for paved floors in halls and on company yards. The M50-4 is an all-wheel-drive rough-terrain forklift for uneven outdoor terrain with pneumatic tyres and high ground clearance. For indoor operation with heavy loads, the MI 50 D is the right choice.What does free lift mean on the triplex mast?
Free lift describes the distance the fork carriage is raised before the mast itself extends upwards. This allows lifting work under low ceilings without the mast height increasing immediately. For indoor operation with ceiling heights below 6 metres, this is a practically relevant advantage.Which industries is this forklift suitable for?
Steel industry, paper warehouses, plastics processing, mechanical engineering, automotive suppliers – anywhere heavy unit loads have to be moved on several racking levels. Also suitable for heavy-duty handling on paved outdoor areas.Can the MI 50 D also be used outdoors?
Yes, on paved outdoor surfaces such as asphalt, concrete or compacted ground. For unpaved terrain, construction sites or soft ground, a rough-terrain forklift is the right choice.Check availability now and request a quote.
