3.8-tonne Electric Forklift | EP EFL382X5 4500 mm

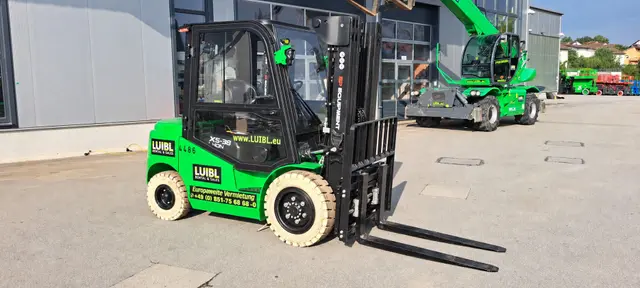

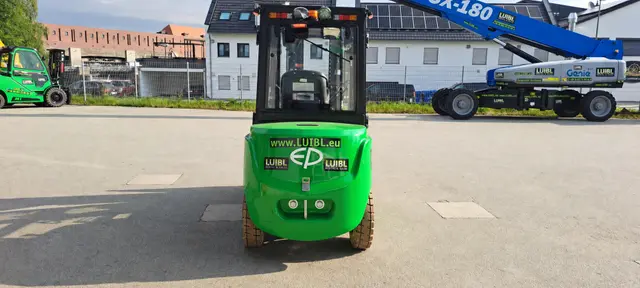

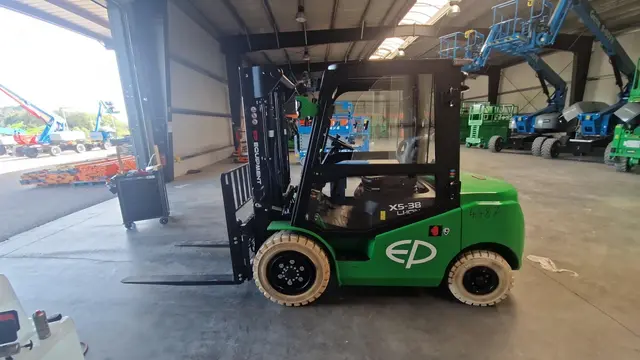

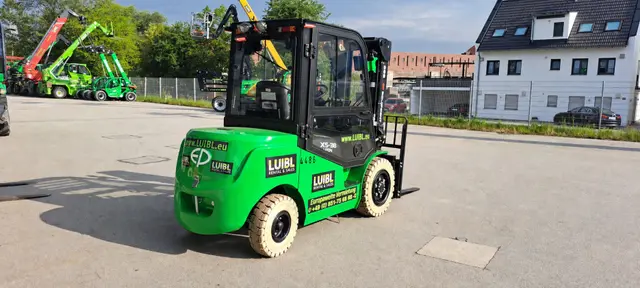

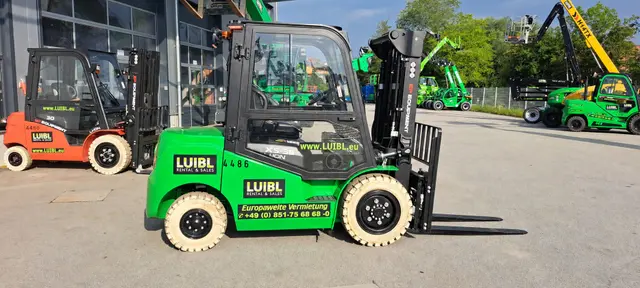

Bild 0 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmBild 1 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmBild 2 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmBild 3 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmBild 4 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mm

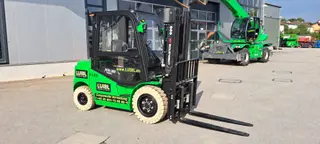

Vorschaubild 0 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmVorschaubild 1 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmVorschaubild 2 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmVorschaubild 3 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mmVorschaubild 4 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 4500 mm

Technical data

Below you will find all product details.

Lifting height
4,50 m
Lifting capacity
3.800 kg
Dimensions
2,80 m x 1,25 m x 2,18 m
Weight
5.350 kg
Make
EP
Model
EFL382X5 4500 mm
Drive unit
Electric
Article designation
3.8-tonne Electric Forklift

EP EFL382X5 hire – electric forklift with 3.8 t capacity and 4.5 m triplex mast

The EP EFL382X5 is an electric counterbalance forklift with a capacity of 3,800 kg and a modular lithium-ion battery design. In the version with a triplex free-lift mast and 4.5 m lift height, it covers the typical requirements of standard warehouses and production halls where neither particularly high racking nor unusual clearance heights are needed. At Luibl Rental you can hire the EFL382X5 at short notice, across Europe and including maintenance and service from a single source.

Technical data EP EFL382X5 (triplex 4.5 m)

ParameterValue
Rated capacity3,800 kg
Lift height (triplex free-lift mast)4.50 m
Free lift (without/with load backrest)1.49 m / 1.09 m
DriveElectric, AC traction motor 16 kW (S2 60 min), lift motor 30 kW (S3 15%)
BatteryLithium-ion 80 V/280 Ah, optional 80 V/560 Ah (2nd module)
Dead weight5,350 kg
Dimensions (L x W x H, overhead guard)2.80 m x 1.25 m x 2.16 m
Travel speed with/without load15 / 16 km/h
Max. gradeability with/without load16% / 20%
TyresSolid rubber
Ground clearance150 mm (centre of wheelbase)
Turning radius2.52 m
Sound pressure level at operator position< 74 dB(A)
CertificationCE

Applications of the EP EFL382X5 with 4.5 m mast

Standard warehouses

For classic storage and retrieval in racking of normal height, the 4.5 m variant is an economical choice within the EFL382X5 series – sufficient lift height without paying extra for unused reserves.

Production halls and material flow

When transporting pallets, raw materials or finished goods between production lines, the compact overall height allows passage through standard doors without any structural modifications.

Outdoor and yard areas

The high ground clearance of 150 mm and the solid rubber tyres also make the EFL382X5 suitable for uneven yard areas, ramps and surfaces roughened by the weather.

Multi-shift operation

Thanks to opportunity charging of the lithium battery, the forklift can be recharged during breaks without the need for a battery change – relevant for companies with continuous two- or three-shift operation.

Modular lithium-ion battery system

The EFL382X5 is supplied as standard with one lithium battery module (80 V/280 Ah). If greater endurance is required – for example in peak season or in multi-shift operation – a second module can be retrofitted, doubling the capacity to 560 Ah. This reduces downtime due to low battery charge and makes the forklift flexibly adaptable to fluctuating requirements without having to rent another machine.

Hire or buy the EP EFL382X5?

CriterionHire from Luibl RentalPurchase
Capital commitmentnone, predictable rental costshigh investment amount
Maintenance & serviceincludedown responsibility
Availabilityat short notice, across Europedelivery time depending on manufacturer
Flexibility when requirements changeswitch to another lift height (4.8 m / 6.0 m) possiblefixed to one mast size
Makes sense forproject-related, seasonal requirementspermanent, high-frequency use

Why hire the EP EFL382X5 from Luibl Rental?

  • Modular lithium-ion system: capacity can be expanded from 280 Ah to 560 Ah if required
  • Availability at short notice: prompt feedback on price and delivery date after your enquiry
  • Europe-wide use: transport and set-up can also be organised across national borders
  • Maintenance & service included: no hidden follow-up costs
  • Maintenance-free battery: opportunity charging without a fixed charging cycle

Frequently asked questions about the EP EFL382X5 (4.5 m)

What is the capacity of the EP EFL382X5?

The EFL382X5 lifts a maximum of 3,800 kg at a load centre distance of 500 mm.

How long does the battery last in shift operation?

With the standard module (280 Ah), one-shift operation with opportunity charging is possible; for continuous multi-shift operation, the optional second battery module (560 Ah in total) is recommended.

Is the EFL382X5 also suitable for outdoor use?

Yes, the solid rubber tyres and the ground clearance of 150 mm allow use in yard and ramp areas.

Which other lift heights are available from Luibl Rental?

In addition to the 4.5 m variant, Luibl Rental also offers the EFL382X5 with 4.8 m and 6.0 m lift height for higher racking requirements.

How quickly is the EP EFL382X5 available?

If available in the rental fleet, we deliver at short notice across Europe by appointment.

Enquire about the EP EFL382X5 now

Check the current availability of the EP EFL382X5 with 4.5 m triplex mast for your project. Our team will get back to you promptly with price and delivery date.

Use and benefits

The electric drive enables operation without exhaust emissions on site.

Check availability now and request a quote.
