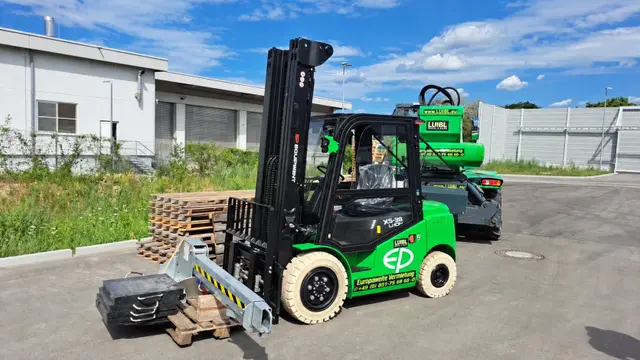

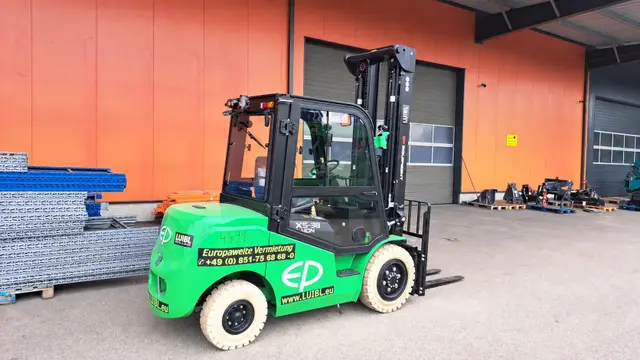

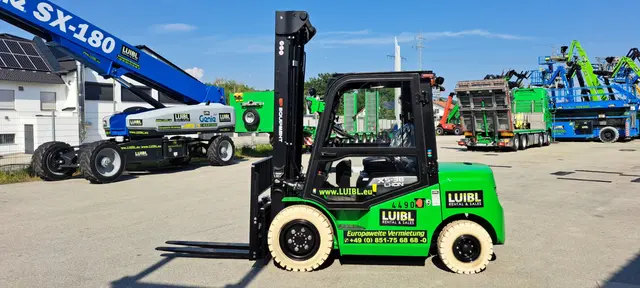

3.8-tonne Electric Forklift | EP EFL382X5 6000 mm



EP EFL382X5 Hire – Electric Forklift with 3.8 t Capacity and 6.0 m Triplex Mast
The EP EFL382X5 is an electric counterbalance forklift with a 3,800 kg lifting capacity and a modular Li-ion battery design. In the version with a triplex full free lift mast and 6.0 m lift height, it is the right choice for racking warehouses with tall storage heights where the 4.5 m and 4.8 m variants are no longer sufficient. At Luibl Rental you can hire the EFL382X5 at short notice, anywhere in Europe, including maintenance and service from a single source.
Technical Data EP EFL382X5 (Triplex 6.0 m)
| Parameter | Value |
|---|---|
| Rated capacity | 3,800 kg |
| Lift height (triplex free lift mast) | 6.00 m |
| Free lift (without/with load backrest) | 2.180 m / 1.775 m |
| Mast height lowered | 2.87 m |
| Mast height extended with load backrest | 7.125 m |
| Drive | Electric, AC drive motor 16 kW (S2 60 min), lift motor 30 kW (S3 15%) |
| Battery | Lithium-ion 80 V/280 Ah, optional 80 V/560 Ah (2nd module) |
| Service weight | 5,350 kg |
| Dimensions (L x W x H, overhead guard) | 3.87 m x 1.25 m x 2.16 m |
| Travel speed laden/unladen | 15 / 16 km/h |
| Max. gradeability laden/unladen | 16% / 20% |
| Tires | Solid rubber |
| Ground clearance | 150 mm (center of wheelbase) |
| Turning radius | 2.52 m |
| Sound pressure level at operator position | < 74 dB(A) |
| Certification | CE |
Applications of the EP EFL382X5 with 6.0 m Mast
Racking warehouses with tall storage heights
For warehouses with taller racking, the 6.0 m variant is the right solution within the EFL382X5 series – without having to switch to a narrow-aisle truck or reach truck.
Large distribution centers
In modern logistics centers designed for maximum use of space, the additional lift reserve enables storage on the top racking levels that would be out of reach with smaller masts.
Combined use across several racking heights
Since a single forklift can serve all racking zones, there is no need to keep several specialized machines for different racking heights.
Important note on overall height
With the mast extended and the load backrest fitted, the EFL382X5 in this variant reaches an overall height of 7.125 m. Check the ceiling height of your hall and the door heights for delivery in advance (lowered mast height: 2.87 m).
Modular Li-ion Battery System
The EFL382X5 is supplied as standard with one lithium battery module (80 V/280 Ah). Where greater endurance is required, for example in large distribution centers with continuous multi-shift operation, a second module can be added to double the capacity to 560 Ah. This reduces downtime due to low battery and enables continuous operation without battery changes.
Hire or Buy the EP EFL382X5?
| Criterion | Hire from Luibl Rental | Purchase |
|---|---|---|
| Capital commitment | none, predictable hire costs | high investment |
| Maintenance & service | included | own responsibility |
| Availability | at short notice, Europe-wide | delivery time depending on manufacturer |
| Flexibility when requirements change | switch to a different lift height (4.5 m / 4.8 m) possible | fixed to one mast size |
| Makes sense for | project-based, seasonal requirements | permanent, high-frequency use |
Why Hire the EP EFL382X5 from Luibl Rental?
- 6.0 m lift height: for racking warehouses with tall storage heights
- Modular Li-ion system: capacity expandable from 280 Ah to 560 Ah when needed
- Short-notice availability: prompt feedback on price and delivery date after your enquiry
- Europe-wide use: transport and set-up can also be organized across national borders
- Maintenance & service included: no hidden follow-up costs
Frequently Asked Questions about the EP EFL382X5 (6.0 m)
What is the lifting capacity of the EP EFL382X5?
The EFL382X5 lifts a maximum of 3,800 kg at a load center distance of 500 mm – regardless of the mast height selected.
What ceiling height do I need for this variant?
With the mast extended and the load backrest fitted, the forklift reaches an overall height of 7.125 m. Clarify the ceiling height of your hall with our team in advance.
Does the forklift fit through a standard hall door?
With the mast lowered, the transport height is 2.87 m – this is relevant for delivery and should be checked in advance against the door heights at the site.
How long does the battery last in shift operation?
With the standard module (280 Ah), shift operation with opportunity charging is possible; for continuous multi-shift operation, the optional second battery module (560 Ah in total) is recommended.
How quickly is the EP EFL382X5 available?
If available in the rental fleet, we deliver at short notice, Europe-wide, on an agreed date.
Enquire about the EP EFL382X5 Now
Check the current availability of the EP EFL382X5 with 6.0 m triplex mast for your project. Our team will get back to you promptly with price and delivery date.
Use and Benefits
The electric drive enables exhaust-free operation on site.
Check availability now and request a quote.
