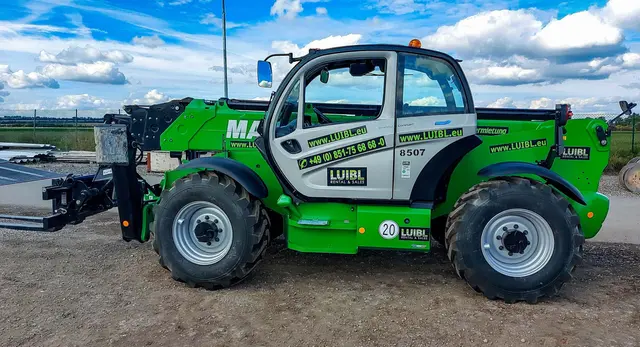

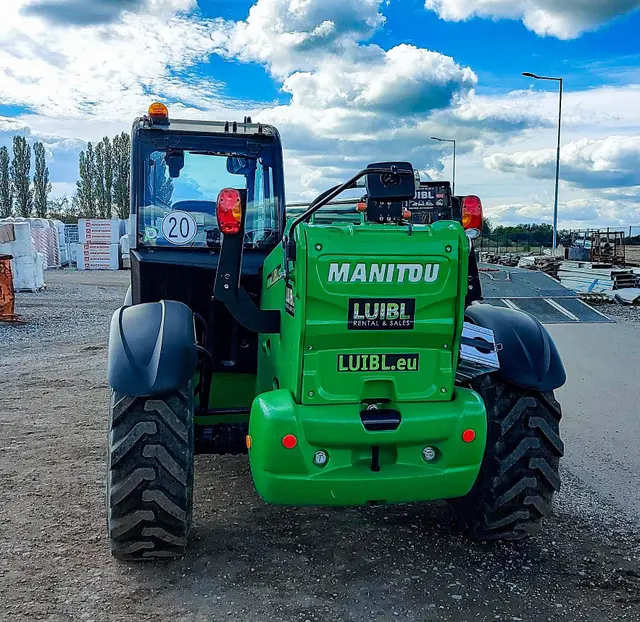

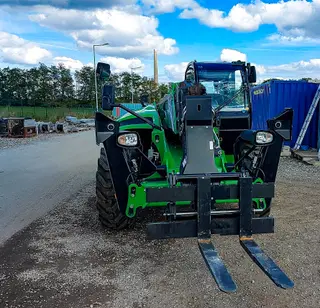

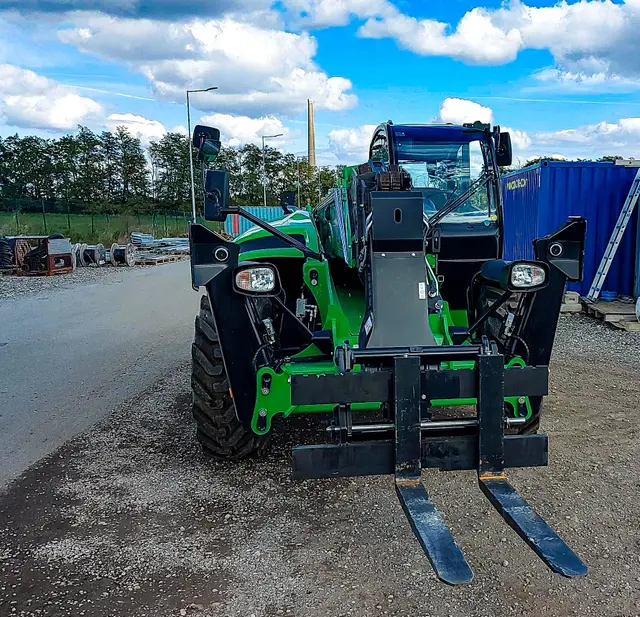

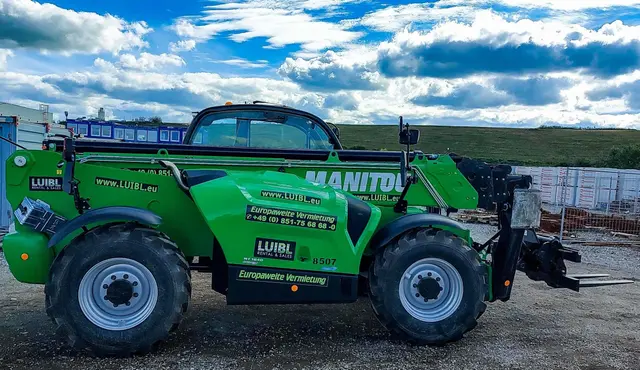

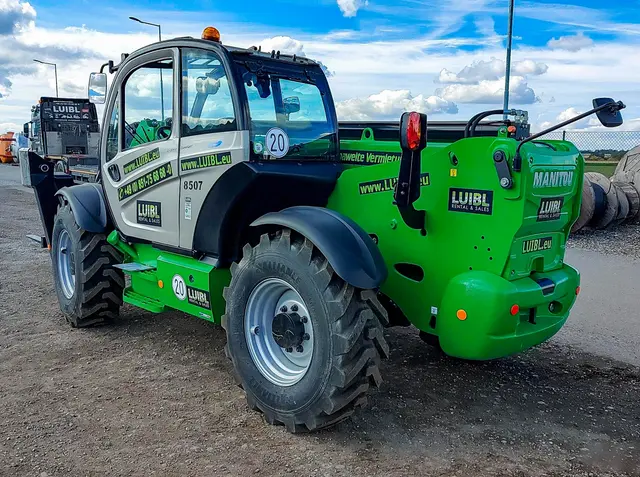

TSS-4018 | Manitou MT 1840





Manitou MT 1840 hire: the strong solution for great heights
If your construction project is literally aiming high, the Manitou MT 1840 is a suitable choice. As a rigid telehandler from the Luibl Rental fleet, this machine combines a great lift height with the stability needed for heavy loads. With a maximum lift height of 17.55 metres and a lifting capacity of 4,000 kg, it is specifically designed for use in multi-storey building construction, roofing work or the installation of steel structures. Despite its size, the MT 1840 remains manoeuvrable and precise to handle.Technical data and performance at a glance
The Manitou MT 1840 impresses with key technical figures that ensure a smooth workflow even in demanding conditions. The machine is powered by a robust diesel engine that delivers the energy needed for the powerful four-wheel drive even at full load. Particularly noteworthy is the lateral reach of more than 13 metres, which allows materials to be set down precisely even over obstacles. To work safely at great heights, the MT 1840 has hydraulic folding stabilisers at the front. These provide a wider footprint and high stability when lifting heavy pallets or components. The integrated chassis levelling system also allows the operator to compensate for slight unevenness in the terrain, so that the boom always stands perfectly vertical – a decisive factor for safety and precision on every site.Efficiency through simple operation and comfort
Despite the complex tasks handled with an 18-metre telehandler, the controls remain intuitive. The proven multifunction joystick allows all movements of the telescopic boom as well as changes of travel direction to be carried out with one hand. This helps the driver stay focused during long shifts and noticeably increases handling performance. The spacious cab offers excellent all-round visibility, which minimises the risk of accidents, especially when manoeuvring on busy sites. Thanks to the different steering modes – front-wheel, four-wheel and crab steering – the MT 1840 can be safely navigated even through narrow site entrances.A look at everyday work: installation of industrial halls
A typical place of use for the Manitou MT 1840 from the Luibl Rental fleet is the construction of logistics and industrial halls. On a project in a commercial area, a customer had to place heavy glulam beams for the roof structure at a height of 15 metres. As the ground around the foundation was not yet paved, a conventional forklift could not be used. Thanks to its off-road chassis and large tyres, the MT 1840 was able to drive right up to the installation position without difficulty. The machine was securely supported with the stabiliser pads, and the beams, weighing several tonnes, were lifted gently and to the nearest centimetre into their brackets. Without this enormous reach and lifting power, a much more expensive mobile crane would have had to be ordered.Safety and technical reliability
At Luibl Rental, we leave nothing to chance when it comes to safety. Every Manitou MT 1840 is thoroughly cleaned and technically inspected after each job. The machine is serviced and inspected before handover, so you can rely on a fully operational machine. Electronic monitoring systems in the cab constantly inform the driver about the current load and the angle of inclination in order to reliably prevent the boom from being overloaded. We recommend that the machine is only operated by trained personnel to support the safety of people and materials.Technical data
- Lift height: 17.55 m
- Lifting capacity: 4,000 kg
- Lateral reach: 13.08 m
- Width: 2.42 m
- Height: 2.5 m
Check availability now and request a quotation.
