MIK-174 | Maeda MC174C

Bild 0 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CBild 1 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CBild 2 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CBild 3 einer Mietmaschine vom Typ MIK-174 | Maeda MC174C
Vorschaubild 0 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CVorschaubild 1 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CVorschaubild 2 einer Mietmaschine vom Typ MIK-174 | Maeda MC174CVorschaubild 3 einer Mietmaschine vom Typ MIK-174 | Maeda MC174C

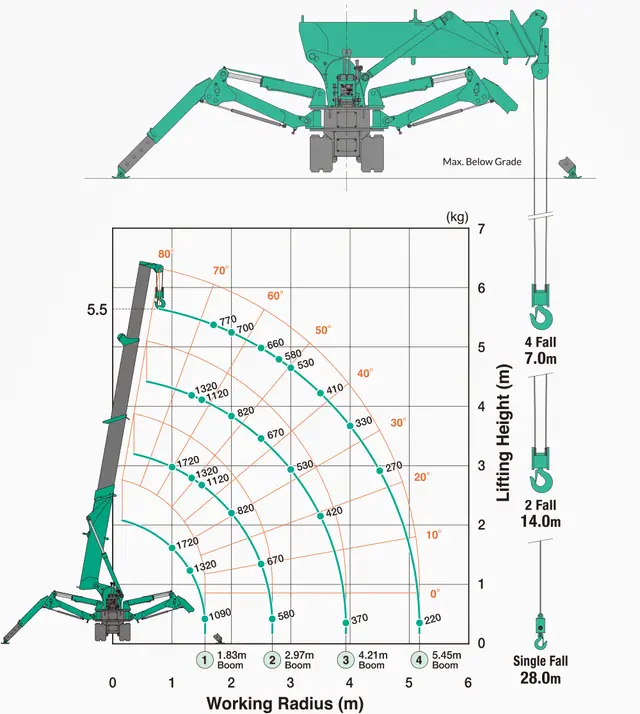

Technical data

Below you will find all product details.

Lifting height
5,50 m
Lifting capacity
1.720 kg
Lateral reach
5,17 m
Dimensions
2,00 m x 0,59 m x 1,30 m
Weight
1.290 kg
Make
Maeda
Model
MC174C
Article designation
MIK-174

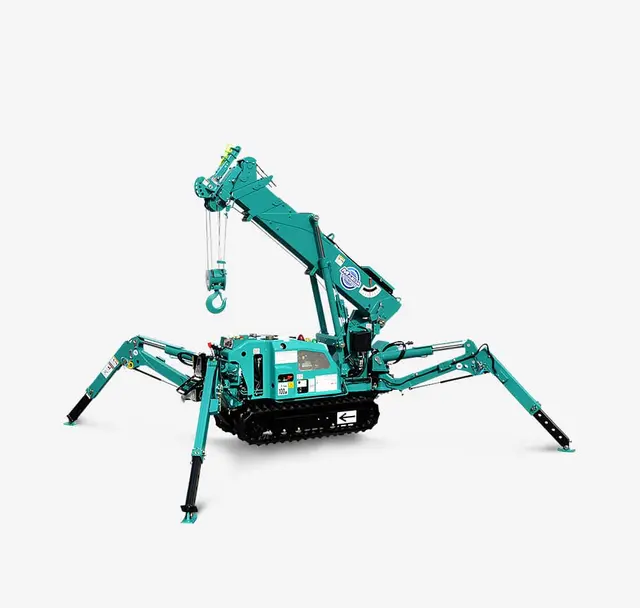

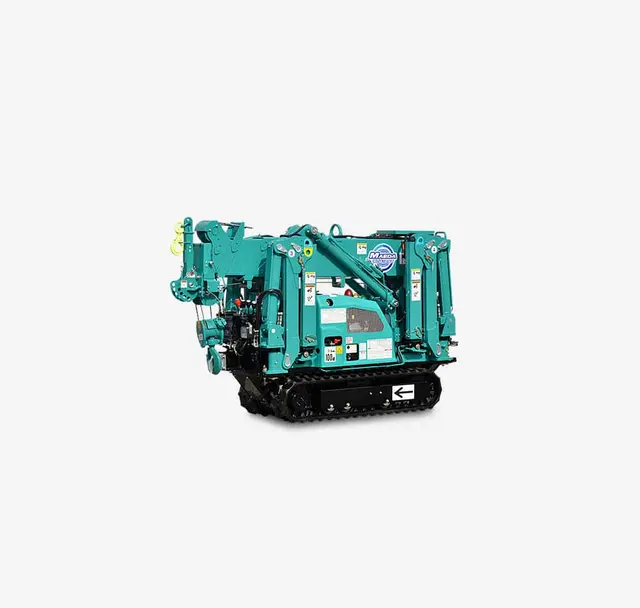

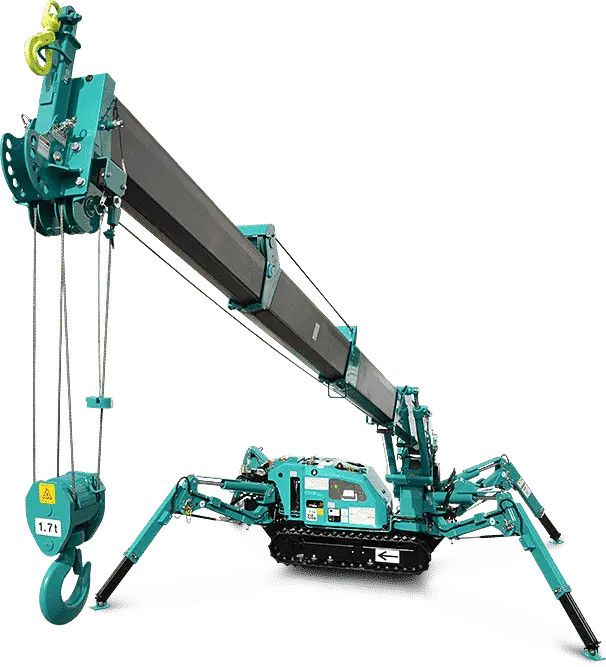

MIK-174 | Maeda MC174C – Mini Crane

The Maeda MC174C mini crane is a compact and powerful lifting solution for sites with limited space. With a maximum load capacity of 1,720 kg and a slim design only 590 mm wide, this mini crane is efficient and versatile. This mini crane is ideal for work in the tightest spaces, thanks to its maximum working radius of 5.17 m and a lifting height of 5.5 m. The outriggers allow stable positioning, even on uneven ground. Maeda mini cranes are known for their high quality and performance, and the MC174C is no exception. With its small footprint and strong load capacity, this mini crane is an excellent choice for construction projects where space and performance are decisive.

Key Technical Data

  • Lifting height: 5.5 m
  • Load capacity: 1,720 kg
  • Lateral outreach: 5.17 m
  • Width: 3.06 m
  • Height: 5.5 m

Application and Benefits

The drive concept supports a wide range of operating conditions.

Check availability now and request a quote.
