MIK-299 | SPT299





SPT299 technical data
| Parameter | Value |
|---|---|
| Manufacturer | SPT |
| Max. lifting capacity | 2,950 kg |
| Working radius | 11.5 m |
| Max. hook height | 9.7 m (14.5 m incl. fly jib) |
| Gradeability | max. 20° or 36 % |
| Lifting below ground level | 10.0 m (4-fall reeving), 20.0 m (2-fall reeving), 40.0 m (1-fall reeving) |
| Rope length | 40 m (1-fall) / 20 m (2-fall) / 10 m (4-fall) |

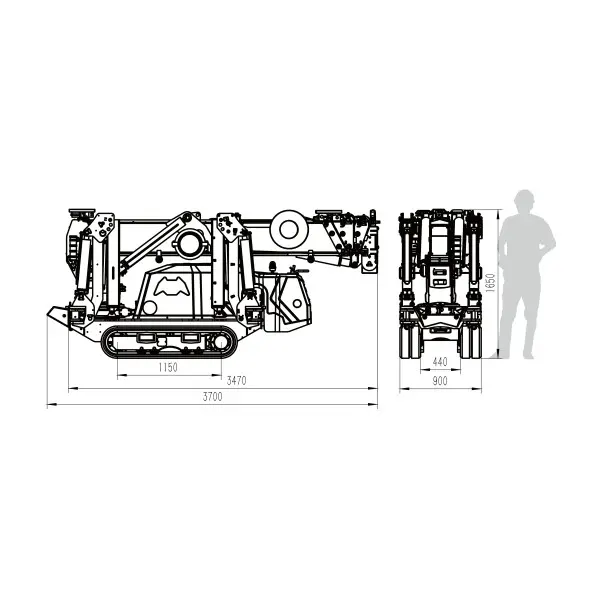

| Dimensions (L x W x H) | 3.70 m x 0.90 m x 1.65 m |
| Min. footprint (outriggers extended) | 2.56 m x 3.26 m |
| Drive | Hybrid: diesel / electric 240 V |
| Diesel engine | YANMAR 3TNV74F, 11.2 kW at 2,400 rpm |
| Operating weight | approx. 2,750 kg (2,980 kg with fly jib) |
| Standard equipment | Assembly tip, load hook, engine heater, radio remote control with digital load display, hour meter, 1/2/4-fall hook block, rubber tracks, 360° slewing range, over-hoist protection, load moment limiter, emergency stop |
Applications of the SPT299
Glass and facade installation
Combined with a vacuum glass lifter, the SPT299 lifts large-format glass elements precisely into position. Its low overall height allows crane work even under low ceilings on the ground floor – an area where many comparable mini cranes reach their limits.
Industrial and plant maintenance
During repair and maintenance work on machines, pumps or units in production halls, the compact design provides access even between closely spaced installations.
Construction on confined sites
At a width of only 90 cm, the SPT299 fits through standard doors and narrow access routes where a conventional mobile crane can no longer manoeuvre.
Event and stage construction
For setting up and dismantling stage, lighting and sound equipment, the radio remote control allows the SPT299 to be operated precisely, without additional operating personnel at the crane itself.

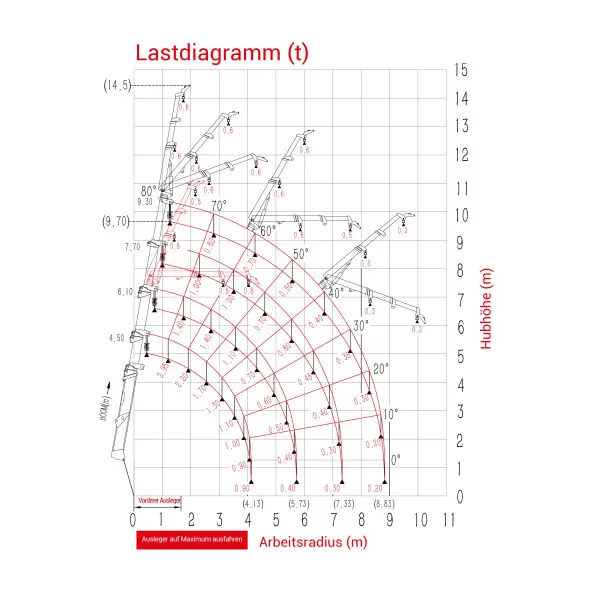

Fly jib – additional reach for the SPT299
With the fly jib fitted, the maximum hook height of the SPT299 increases from 9.7 m to 14.5 m – a gain of almost 5 m in reach without switching to a larger crane model. This is particularly relevant for facade work on upper floors or for roofing, where a larger but less manageable crane would no longer fit through the available access routes. We will advise you on the right jib variant for your project.
Hire or buy the SPT299?
| Criterion | Hire from Luibl Rental | Purchase |
|---|---|---|
| Capital commitment | none, predictable rental costs | high investment |
| Maintenance & service | included | your own responsibility |
| Availability | at short notice, across Europe | delivery time depending on manufacturer |
| Flexibility for project size | switch to another model for each job possible | tied to one model |
| Makes sense for | project-based, seasonal or occasional requirements | permanent, high-frequency use in your own fleet |
For companies that do not need the SPT299 permanently in their own fleet, hiring is usually the more economical solution: inspection, maintenance and value retention lie with Luibl Rental rather than with your own company.
Why hire the SPT299 from Luibl Rental?
- Part of the Luibl Rental Group: Since the acquisition of Uplifter by the Luibl Rental Group, you benefit from a Europe-wide rental and service network that goes beyond the previous Uplifter offering
- Availability at short notice: enquire today, feedback on price and delivery date promptly
- Europe-wide use: transport and set-up can also be organised across national borders
- Maintenance & service included: no hidden follow-up costs, technical faults are handled by us
Frequently asked questions about the SPT299
What is the lifting capacity of the SPT299?
The SPT299 lifts a maximum of 2,950 kg at minimum working radius. The working radius is up to 11.5 m.
Does the SPT299 fit through narrow doors or tight access routes?
At a width of only 900 mm, the SPT299 fits through most standard doors and narrow site entrances where larger cranes can no longer manoeuvre.
How high can the SPT299 lift with the fly jib?
With the fly jib fitted, the SPT299 reaches a maximum hook height of 14.5 m; without the jib, the value is 9.7 m.
How quickly is the SPT299 available?
If available in our rental fleet, we deliver at short notice across Europe by appointment.
Request the SPT299 now
Check the current availability of the SPT299 for your project. Our team will get back to you promptly with price and delivery date.
Use and benefits
The drive concept supports a range of operating conditions.
