RMK-423 | Maeda CC423

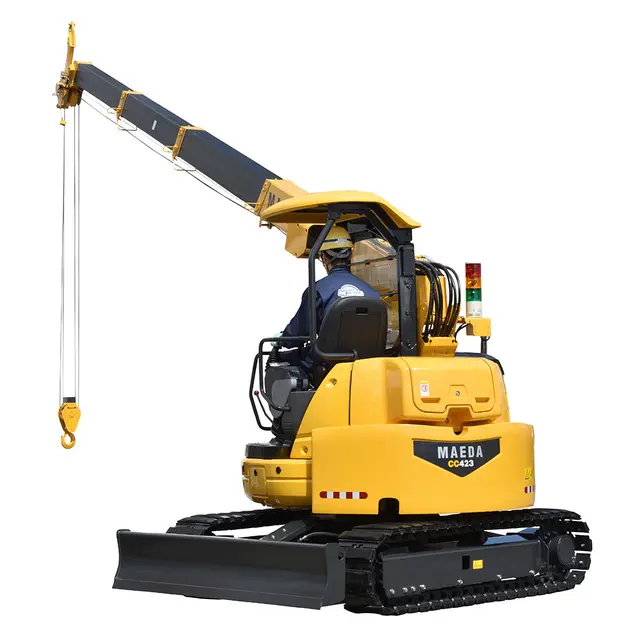

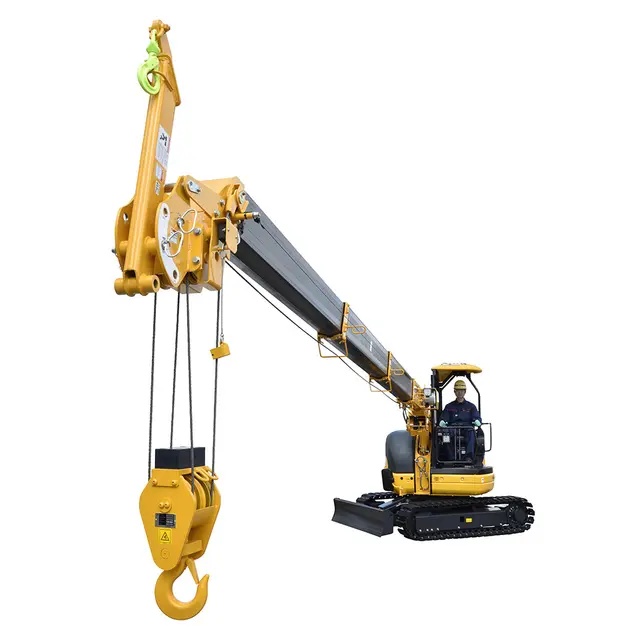

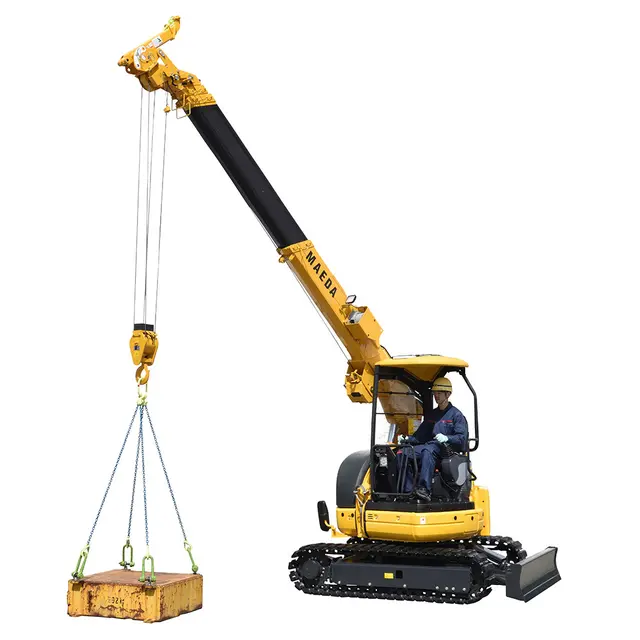

Bild 0 einer Mietmaschine vom Typ RMK-423 | Maeda CC423Bild 1 einer Mietmaschine vom Typ RMK-423 | Maeda CC423Bild 2 einer Mietmaschine vom Typ RMK-423 | Maeda CC423

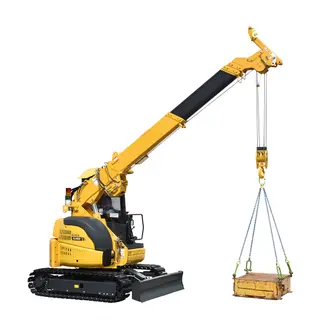

Vorschaubild 0 einer Mietmaschine vom Typ RMK-423 | Maeda CC423Vorschaubild 1 einer Mietmaschine vom Typ RMK-423 | Maeda CC423Vorschaubild 2 einer Mietmaschine vom Typ RMK-423 | Maeda CC423

Technical data

Below you will find all product details.

Lifting height
9,46 m
Lifting capacity
1.465 kg
Lateral reach
8,38 m
Dimensions
4,02 m x 1,655 m x 2,495 m
Weight
4.400 kg
Make
Maeda
Model
CC423
Article designation
RMK-423

Maeda CC423 hire – mini crawler crane with pick & carry for tight job sites

When conventional cranes fail for lack of space, the Maeda CC423 takes over. The compact telescopic crawler crane from Maeda lifts up to 2,930 kg and travels with loads of up to 1,465 kg freely across the site – all without a single outrigger. Luibl Rental provides the machine serviced and inspected.

Technical data at a glance

The Maeda CC423 is based on a fully automatic 4-section telescopic boom with a pentagonal cross-section. The maximum hook height is 9.46 m. The crane is powered by a Yanmar 3TNV88F-EPMBA diesel engine delivering 17.5 kW at 2,400 min⁻¹.

Key data at a glance:

  • Maximum load capacity: 2,930 kg at 1.5 m radius

  • Pick & carry: 1,465 kg, load can be travelled on the hook

  • Max. hook height: 9.46 m

  • Travel speed: 0–4.6 km/h, 2 stages

  • Tail swing radius: 980 mm

  • Transport width: 1,740 mm

  • Transport height: 2,495 mm

  • Ground pressure: 43.5 kPa

  • Engine: Yanmar 3TNV88F-EPMBA

  • Optional searcher hook: 850 kg load capacity

The integrated dozer blade additionally allows light grading work and improves stability on uneven ground. The minimal ground pressure of 43.5 kPa protects sensitive surfaces – relevant for work in underground car parks, historic buildings or on roofs.

Pick & carry: what it means in practice

Conventional spider cranes need deployed outriggers before they can pick up a load. The CC423 does not. The crawler undercarriage provides the stabilization – the crane can keep moving with the load raised.

This considerably reduces crane cycles: no extending outriggers, no repositioning, no retracting outriggers. On tight job sites, in production halls or during facade work in busy areas, this is a direct time advantage.

The travel hydraulics feature pilot control – giving the operator sensitive control even at maximum load.

Typical applications

The CC423 is not an all-purpose crane but a specialist for specific requirements. It is suited to places where other machines fail because of their dimensions or outrigger footprint:

  • Glazing and facade construction: precise installation of heavy glass elements on upper or lower floors, passage through narrow access routes

  • Industrial services and maintenance: machine replacement in existing production halls, work under low roof structures, optional searcher hook with 850 kg load capacity

  • Specialist civil engineering: crane work on slopes, on gravel surfaces or in areas with load restrictions

  • Infrastructure and municipal projects: lifting work in densely built-up city centers without full road closures

  • Logistics centers and warehouses: installation work beneath active racking systems

Safety equipment

The CC423 comes as standard with a programmable load moment limiter. The system continuously monitors boom position, load weight and working radius. If an overload or tipping risk is imminent, the automatic system intervenes before the operator has to react.

Standard equipment also includes:

  • 7-inch multi-monitor display in the enclosed operator station

  • Tilt alarm for travel on sloping terrain

  • Hydraulic safety valves

  • Overwind protection for the winch

  • Data logger for complete operational documentation

  • Emergency stop switch

Every machine is handed over serviced and inspected. On request, you will receive a machine briefing at handover.

Hire the Maeda CC423 from Luibl Rental

Luibl Rental delivers the CC423 with its own low-loader fleet directly to your site; delivery and transport are arranged by agreement. For long-term hire we prepare individual quotes including service intervals.

Our service hours: Monday to Friday, 08:00–17:00

Check availability now and request a quote.
