GW-425 | Uplifter Glassworker GW425
Uplifter Glassworker GW425 hire – versatile glass lifter up to 425 kg

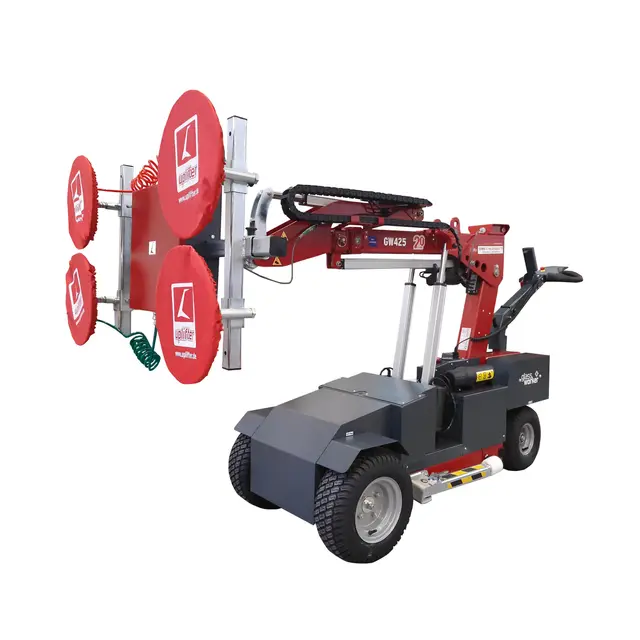

The Uplifter Glassworker GW425 is the all-rounder of the Glassworker range: strong enough for panes weighing 425 kg, yet at around 0.82 m wide still slim enough for interior fit-out work. An additional manual extension (Highlifter) and the optional radio remote control make this glazing robot a flexible tool for window fabricators, facade installers and metalwork contractors. As owner of the Uplifter brand, the Luibl Group supplies the GW425 at short notice, serviced and inspected, from its own rental fleet.
Technical data: Uplifter Glassworker GW425
We check the appropriate load chart for your specific pane weight.
| Feature | Value |
|---|---|
| Max. lifting capacity | 425 kg |
| Working height (centre of vacuum cross) | 2.990 m |
| Vertical installation up to | 3.00 m |
| Overhead installation up to | 3.40 m |
| Forward reach | 1.70 m |
| Dead weight | approx. 680 kg |
| Length | 2.280 m |
| Width | 0.816 m |
| Overall height | approx. 1.36 m |
| Extension | electric + additional manual extension (Highlifter) |
| Tilting of vacuum unit | 99° forward |
| Control | radio remote control optional, angle correction |
| Suction pads | silicone-free and non-marking |
| Application area | suitable for indoor and outdoor use |
| Drive / power supply | electric / battery |
How the GW425 works and how it is equipped
On the GW425, Uplifter combines an electric basic extension with a manual additional extension, the so-called Highlifter. This allows the unit to reach overhead installation heights of up to 3.40 m without losing stability. The vacuum unit tilts up to 99° forward, so panes can be raised from the horizontal and fitted precisely. Using the optional radio remote control, a single person controls extension, rotation and fine positioning from a safe distance – helpful when the view of the installation point is restricted. The angle correction compensates for inclines and makes square fitting easier.
Applications of the GW425 glass lifter
With 425 kg, the GW425 covers most common insulating glass and facade formats and is also suitable for materials other than glass.
- Window and facade construction: Installing medium-sized insulating glass units and fixed glazing in new builds and renovations.
- Metal and wood panel handling: The GW425 also handles wood, composite and metal panels – ideal for facade panels and door leaves.
- Interior fit-out & shopfitting: Installation of all-glass elements and partition walls thanks to its door-friendly width.
- Conservatory and patio roof construction: Precise overhead installation of roof glazing up to 3.40 m.
- Commercial and special construction: Flexible individual installations where a permanently installed crane would be uneconomical.
Your benefits when renting from Luibl
Because the Luibl Group runs Uplifter itself, you rent the GW425 directly from the manufacturer's owner – with everything that goes with it:
- Handed over ready for use: inspected units with suitable suction pads and optional radio remote control, delivered to site on request.
- Complete range at hand: if the GW425 is not enough, you can switch to the GW625 or GW1125 without changing supplier.
- Inspection included: Luibl takes care of inspection, maintenance and spare parts supply.
- Europe-wide logistics: provision and transport, including across borders.
- Technical advice: We match load capacity, suction pads and reach to your component.
Rent or buy – which makes sense for the GW425?
Buying a glass lifter in the 425 kg class ties up capital that is often better used on project sites. If you only need the GW425 for individual construction phases, renting is clearly cheaper and keeps you flexible in your choice of model.
| Criterion | Renting from Luibl | Buying |
|---|---|---|
| Investment | project-based, predictable | high one-off costs |
| Inspection & maintenance | included in the rental price | to be organised yourself |
| Suitable model per job | freely selectable (GW295–GW1125) | tied to one unit |
| Utilisation risk | borne by the rental company | borne by the buyer |
| Storage & transport | via Luibl | own responsibility |
Safety and operation
The machine is handed over serviced and inspected; Luibl carries out and documents the recurring inspection. The manual Highlifter and the radio remote control improve ergonomics and keep the operator out of the danger zone beneath the load. You receive the inspection records with the unit, so your documentation for clients remains complete. We offer a machine briefing on request.
Matching glass lifters and complementary equipment
Smaller panes can be moved more economically with the Glassworker GW295; for heavier elements the GW625 and GW1125 are available. If the load also has to be lifted to height, a mini crane is the ideal complement to the glass lifter. You will find practical examples in the article Mini crane & vacuum lifter in glass construction. How Luibl became the owner of Uplifter is described in Luibl Group takes over Uplifter.
Frequently asked questions about the Uplifter Glassworker GW425
Can the GW425 also lift wood or metal panels?
Yes. The GW425 is not limited to glass and, with suitable suction pads, also handles wood, composite and metal panels up to 425 kg.
How high does the GW425 reach for overhead installation?
Thanks to the Highlifter, the unit reaches up to 3.40 m for overhead installation and up to 3.00 m for vertical installation.
Is there a radio remote control?
The radio remote control is available as an option and makes operation easier when the view of the installation point is restricted.
How wide is the glass lifter and does it fit through doors?
At around 0.82 m wide, the GW425 can be used in many interior areas; we clarify narrow passages in advance.
Do the suction pads leave marks on the glass?
No, the GW425 works with silicone-free, non-marking suction pads.
How quickly is the GW425 available?
As a rental company closely linked to the manufacturer, Luibl can usually provide the GW425 at short notice – just tell us your preferred date.
Request the Uplifter Glassworker GW425 now
Request your non-binding rental quote for the GW425. Our application engineers will advise you on the right equipment and check availability at your location.
