VAS-450 | Uplifter vacuum lifter UPG450

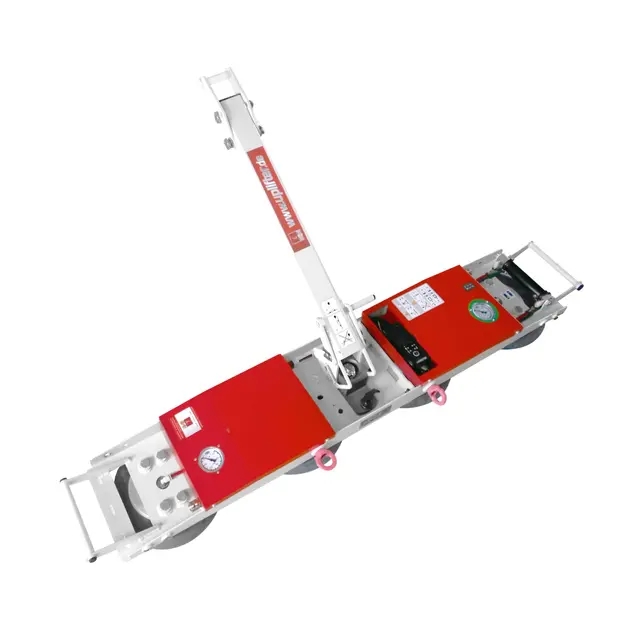

Bild 0 einer Mietmaschine vom Typ VAS-450 | Uplifter vacuum lifter UPG450
Vorschaubild 0 einer Mietmaschine vom Typ VAS-450 | Uplifter vacuum lifter UPG450

Technical data

Below you will find all product details.

Uplifter UPG450 Vacuum Lifter Hire – Glass Vacuum Lifter for Long Elements up to 450 kg

The Uplifter UPG450 vacuum lifter is an attachable glass vacuum lifter with an overall length of 2.16 m, which makes it particularly suitable for long, slender elements such as ribbon windows, balustrade panes and narrow facade panels. Depending on the number of suction pads fitted, it lifts 300 kg (4 pads) or 450 kg (6 pads) and can be slung on any lifting device with a load hook. As the owner of Uplifter, the Luibl Group provides the UPG450 at short notice, serviced, inspected and throughout Europe.

Technical Data: Uplifter UPG450 Vacuum Lifter

Data taken from the official Uplifter product data and the vacuum lifter catalogue. We will confirm binding values for your component on request.

FeatureValue
Load capacity (4 pads)300 kg
Load capacity (6 pads)450 kg
Length2.16 m (for long, slender elements)
Rotationmanual 360°, detents every 45°
Suction padssilicone-free (no marks)
Mountingon any machine with a load hook (crane, mini crane, telehandler, excavator)
Vacuum generation / power supplymains-independent 12 V battery power supply
Dead weightapprox. 57 kg

Why the Overall Length Makes the Difference

The key advantage of the UPG450 lies in its geometry: at 2.16 m, it distributes the suction forces over a long length and thus stabilizes narrow, long panes that tend to bend when handled with compact lifters. The load capacity scales with the number of pads: four pads for 300 kg, six for 450 kg. The manual 360° rotation with 45° detents allows the element to be moved from the transport position to the installation position without repositioning the carrier machine.

Suitable Carrier Machines

Like all UPG lifters, the UPG450 requires a carrier machine with a load hook. For long elements on the facade, telehandlers are popular because of their reach; indoors and on confined sites, the mini crane is the preferred choice. Luibl keeps suitable carriers in its own rental fleet and supplies them on request.

Applications

  • Facades with ribbon glazing: safely install long balustrade and window bands.
  • Window construction: narrow, tall fixed glazing up to 450 kg.
  • Metal and element construction: handle long panels and sheet metal elements.
  • Renovation: replace long panes using an existing telehandler.

Benefits of Renting from Luibl

  • Close to the manufacturer: directly from the owner of Uplifter, handed over ready for use.
  • Lifter plus carrier: on request including a telehandler or mini crane.
  • Handed over inspected: inspection and maintenance included.
  • At short notice & throughout Europe: cross-border jobs are possible as well.

Rent or Buy?

A special lifter for long elements is often only needed on a project basis. Renting avoids tying up capital in a machine that sits in storage between jobs, and covers inspection and maintenance.

CriterionRental from LuiblPurchase
Capital outlaylow, per projecttied up once
Inspection & maintenanceincludedown effort
Suitable format for each joblifter model freely selectablefixed
Carrier machinecan be rented as wellseparate

Safety

The UPG450 is handed over serviced and inspected; Luibl takes care of the periodic inspection. With long elements, particular attention must be paid to the load centre of gravity relative to the carrier machine; we provide advice on this at handover and supply the inspection records.

Other Vacuum Lifters and Carrier Machines

For smaller panes, the UPG350 is sufficient; the UPG600 and UPG1000 offer greater load capacity. A self-propelled glazing robot can be found in the Glassworker range. A mini crane is suitable as a carrier. Background information is available in the guide Vacuum Lifters – Technology & Types.

Frequently Asked Questions about the Uplifter UPG450

What is the UPG450 particularly suitable for?

With an overall length of 2.16 m, it is particularly suitable for long, slender elements such as ribbon windows and narrow facade panes.

How much does the UPG450 lift?

300 kg with four suction pads, 450 kg with six suction pads.

Do I need my own carrier machine?

Yes, the UPG450 is attached to a lifting device with a load hook. On request, Luibl also rents out the suitable carrier machine.

Do the suction pads leave marks?

No, the suction pads are silicone-free.

Is the inspection included?

Yes, every machine is serviced and inspected; we hand over the records with it.

Request the Uplifter UPG450 Now

Request your non-binding rental quote for the UPG450; we will check availability and the right carrier combination.
