MIK-1099 | SPT1009

Bild 0 einer Mietmaschine vom Typ MIK-1099 | SPT1009Bild 1 einer Mietmaschine vom Typ MIK-1099 | SPT1009Bild 2 einer Mietmaschine vom Typ MIK-1099 | SPT1009Bild 3 einer Mietmaschine vom Typ MIK-1099 | SPT1009
Vorschaubild 0 einer Mietmaschine vom Typ MIK-1099 | SPT1009Vorschaubild 1 einer Mietmaschine vom Typ MIK-1099 | SPT1009Vorschaubild 2 einer Mietmaschine vom Typ MIK-1099 | SPT1009Vorschaubild 3 einer Mietmaschine vom Typ MIK-1099 | SPT1009

Technical data

Below you will find all product details.

Lifting height
28,20 m
Lifting capacity
10.000 kg
Lateral reach
19,00 m
Dimensions
6,38 m x 1,78 m x 2,55 m
Weight
11.800 kg
Make
SPT
Model
SPT1009
Article designation
SPT1099

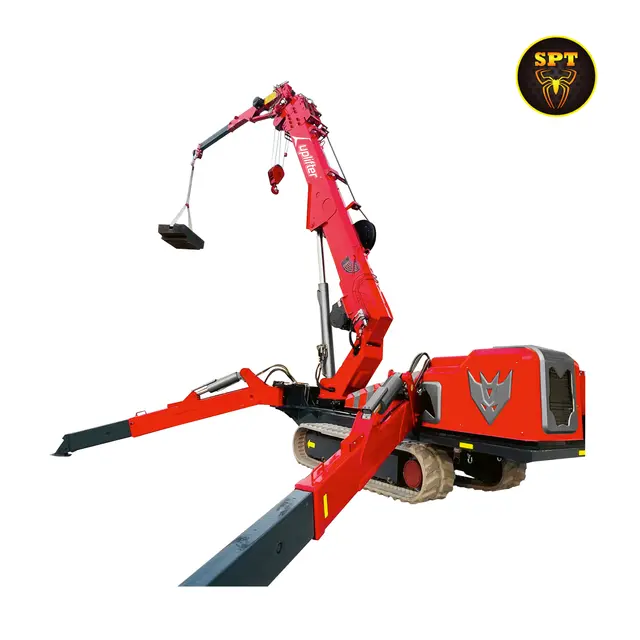

SPT1009 hire – mini crane with 10,000 kg lifting capacity

The SPT1009 lifts up to 10,000 kg – covering lifting tasks for which even the SPT499 is no longer sufficient. With a maximum hook height of 20.2 m (up to 28.2 m with fly jib) and a working radius of up to 19.0 m, the SPT1009 moves large steel and precast concrete elements, heavy machine components and plant parts – precisely, and even where a conventional truck-mounted crane no longer has access. At Luibl Rental you can hire the SPT1009 at short notice, across Europe and with maintenance from a single source.

SPT1009 technical data

ParameterValue
ManufacturerSPT
Max. lifting capacity10,000 kg
Working radiusmax. 19.0 m

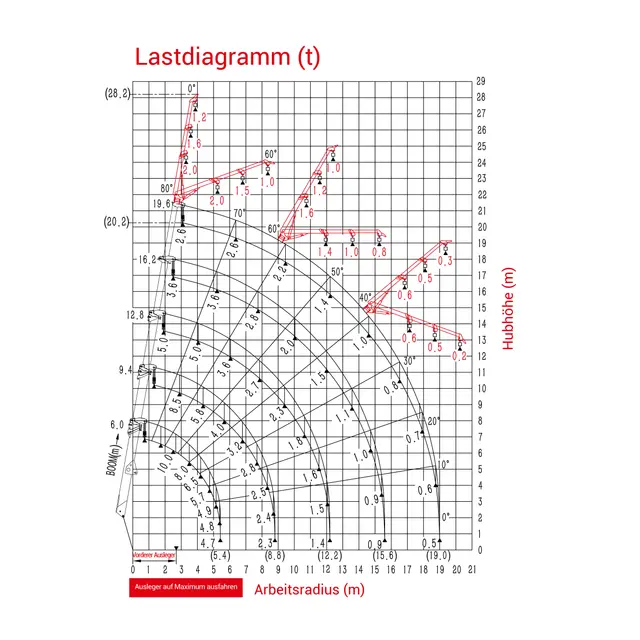

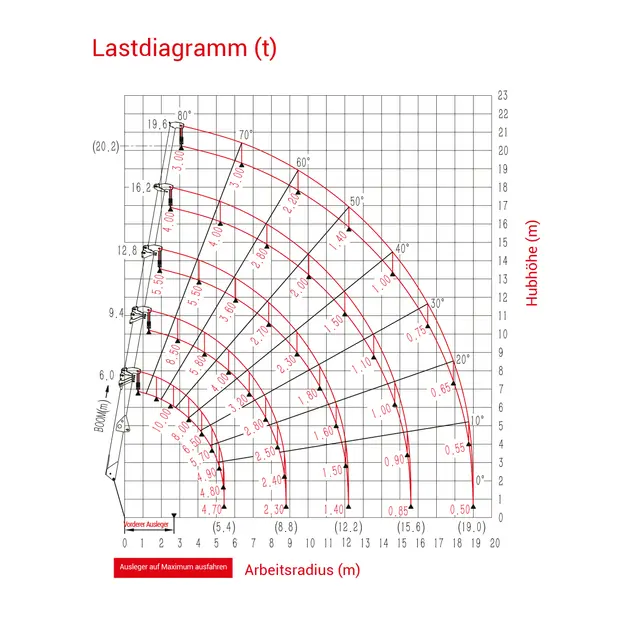

Max. hook height20.2 m (28.2 m incl. fly jib)
Gradeabilitymax. 23° or 42%
Lifting below ground level20.0 m (6-fall reeving), 30.0 m (4-fall reeving), 62.0 m (2-fall reeving), 125.0 m (1-fall reeving)
Max. rope length125.0 m

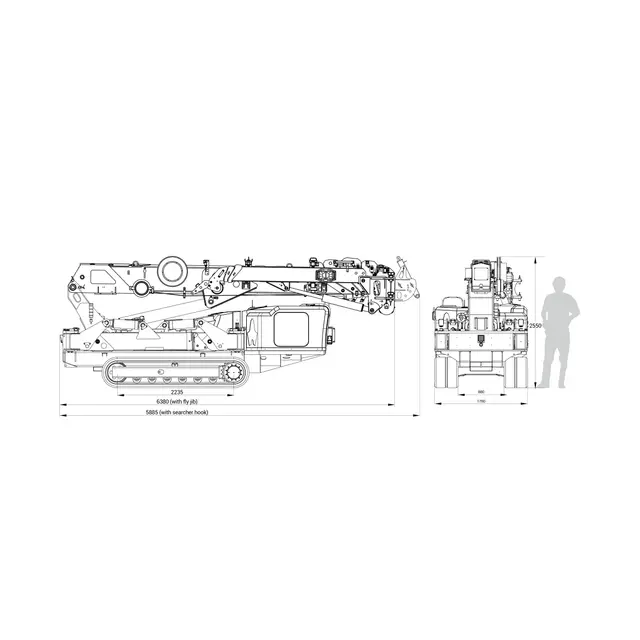

Dimensions (L x W x H)6.38 m x 1.78 m x 2.55 m
Min. footprint (outriggers extended)5.39 m x 5.73 m
DriveHybrid: diesel / electric 380 V
Diesel engineYANMAR 4TNV88, 29.1 kW at 2,400 rpm
Dead weightapprox. 11,800 kg
Standard equipmentFly jib, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-fall hook block, black rubber tracks, 360° slewing range, over-winding protection, hydraulic safety valves, levelling indicator, tilt alarm, emergency stop switch, load moment limiter, operating warning light, outrigger locking, toolbox

Applications of the SPT1009

Heavy-duty steel construction and plant engineering

With 10,000 kg lifting capacity, the SPT1009 lifts large steel structures and plant components that are too heavy even for the SPT499 – reaching locations that a truck-mounted crane with this lifting power cannot even approach.

Precast construction and concrete element installation

Large precast concrete elements can be placed precisely with the SPT1009, even when the site offers no space for a conventional mobile crane.

Power plant and industrial plant engineering

When replacing heavy turbine components, generators or piping systems in industrial plants, the combination of high lifting capacity and compact design ensures access even in densely built plant areas.

Large-format glass and facade installation

Combined with a suitably sized vacuum glass lifter, the SPT1009 also lifts heavy and large-format glass or facade elements as required on high-rise or commercial building projects.

Bridge and infrastructure construction

For maintenance and installation work on bridges or infrastructure structures, the high lifting capacity allows heavy components to be lifted even in confined spaces.

Hire or buy the SPT1009?

CriterionHire from Luibl RentalPurchase
Capital commitmentnone, predictable rental costshigh investment
Maintenance & serviceincludedown responsibility
Availabilityat short notice, across Europelead time depending on manufacturer
Flexibility in project sizeswitch to a smaller model (SPT499, SPT299) per job possibletied to one model
Makes sense forproject-based extra-heavy lifting that does not occur regularlypermanent, very frequent extra-heavy lifting in your own fleet

Hiring is particularly worthwhile for projects that only need this capacity class temporarily: investment risk, maintenance and value retention remain with Luibl Rental.

Why hire the SPT1009 from Luibl Rental?

  • Part of the Luibl Rental Group: Europe-wide rental and service network
  • High lifting capacity: 10,000 kg – for heavy-duty tasks that smaller mini cranes cannot handle
  • Short-notice availability: enquire today, prompt feedback on price and delivery date
  • Europe-wide use: transport and set-up can also be organised across national borders
  • Maintenance & service included: no hidden follow-up costs

Frequently asked questions about the SPT1009

What is the lifting capacity of the SPT1009?

The SPT1009 lifts a maximum of 10,000 kg at minimum radius.

Is the SPT1009 really available for hire at Luibl Rental?

The SPT1009 is also offered for hire as part of our crane range. Contact us for current availability at your location and for your desired period.

What is the difference from the SPT499?

The SPT1009 lifts twice as much as the SPT499 (10 t instead of 5 t) and reaches a greater hook height, but is also considerably heavier and wider. For extra-heavy lifting projects the SPT1009 is the right choice; for medium loads the SPT499 is usually sufficient.

How quickly is the SPT1009 available?

If available in the rental fleet, we deliver at short notice by agreement, also across Europe.

Enquire about the SPT1009 now

Check the current availability of the SPT1009 for your project. Our team will get back to you promptly with price and delivery date.

Use and benefits

The drive concept supports different operating conditions.

Check availability now and request a quote.
