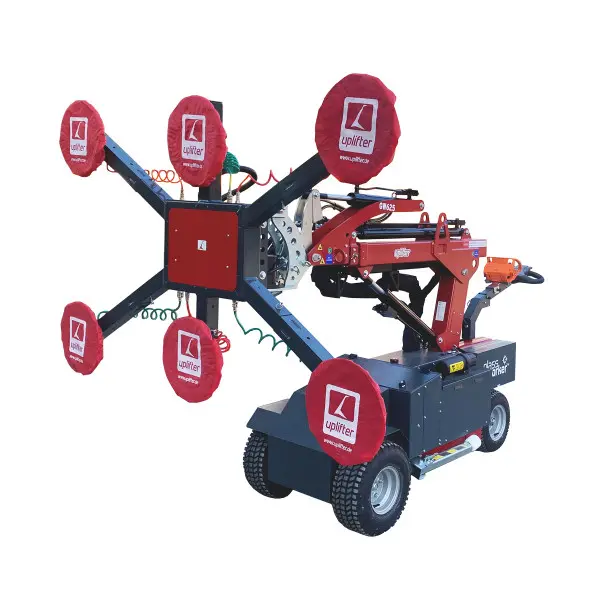

GW-625 | Uplifter Glassworker GW625

Bild 0 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625Bild 1 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625Bild 2 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625
Vorschaubild 0 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625Vorschaubild 1 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625Vorschaubild 2 einer Mietmaschine vom Typ GW-625 | Uplifter Glassworker GW625

Technical data

Below you will find all product details.

Uplifter Glassworker GW625 Hire – Professional Glass Lifter up to 625 kg

The Uplifter Glassworker GW625 (current version GW625-2) is the professional class among self-propelled glass lifters: a lifting capacity of 625 kg, a working height of 3.646 m and a fully hydraulic extension make it the tool of choice for large-format facade glazing and heavy panel installation. Despite its power, the GW625 remains manoeuvrable at around 0.83 m wide. As the owner of Uplifter, the Luibl Group rents out the unit at short notice, serviced, inspected and with a full scope of service.

Technical data: Uplifter Glassworker GW625-2

The figures are based on the official Uplifter catalogue and the load charts; values for older GW625 model years may differ. We will confirm the valid lifting capacity for your component on request.

FeatureValue
Max. lifting capacity625 kg
Working height (centre of vacuum cross)3.646 m
Operating weight1,035–1,095 kg (with counterweights)
Empty weightapprox. 890 kg (without counterweights)
Length2.454 m
Width0.831 m (version from 0.80 m)
Overall heightapprox. 1.74 m
Extensionfully hydraulic + additional manual extension (610 mm, Highlifter)
Vacuum generationelectric
Suction padssilicone-free and mark-free
Area of usesuitable for indoor and outdoor use
Drive / power supplyelectric / battery
Transporta larger transport vehicle is required depending on configuration

What sets the GW625 apart

The key difference from the smaller models is the fully hydraulic extension: it moves even heavy loads smoothly and with precision, providing reserves for exact positioning when installing large panes. It is complemented by an additional manual extension of 610 mm for the final centimetres. With a working height of 3.646 m, the GW625 reaches higher installation points than the GW295 and GW425 while remaining a self-propelled compact unit that does not require an elaborate crane set-up. Electric vacuum generation ensures a constant holding force, while silicone-free suction pads protect sensitive surfaces.

Applications of the GW625

Where pane weights exceed the limits of compact glass lifters, the GW625 plays to its reserves.

  • Large-format facade glazing: installation of heavy insulating glass units in commercial and project construction.
  • Metalwork & prefabricated elements: handling of heavy metal, composite and stone panels up to 625 kg.
  • Industrial & hall construction: glazing of doors, skylight strips and partition walls in larger formats.
  • Renovation of demanding existing buildings: replacement of heavy glazing without a multi-person carrying crew.
  • Higher installation points: jobs where the working height of 3.646 m makes the difference.

Why hire the GW625 from Luibl

The Luibl Group's proximity to the manufacturer shortens the path to availability, accessories and service:

  • Handed over ready for use: inspected, with counterweights and a suitable vacuum cross.
  • Scalable: switch to the GW1125 or back to the GW425 if required – from a single source.
  • Inspection & maintenance included: Luibl takes care of inspection and maintenance during the rental period.
  • Transport solution included: Luibl organises the logistics required for the larger design, across Europe as well.
  • Advice from specialist technicians: coordination of lifting capacity, reach and suction pad configuration.

Hire or buy the GW625?

In the 625 kg class, purchase price, maintenance effort and storage requirements rise noticeably. For many companies, buying only pays off with consistently high utilisation. Hiring shifts this risk to the rental company and leaves you free to choose the model for each project.

CriterionHire from LuiblPurchase
Capital outlaylow, per jobhigh, tied up long term
Inspection & maintenanceincludedyour own effort
Cost-effectivenesseven for individual projectsonly with high utilisation
Transport of the heavy designorganised by Luiblto be handled yourself
Model flexibilityGW295 to GW1125tied to one unit

Safety and operation

The GW625 is handed over serviced and inspected. Especially with high loads, a visual check before each shift and intact vacuum monitoring are crucial – both are part of the operating logic. Luibl carries out the periodic inspection and hands over the records together with the unit. The fully hydraulic extension reduces physical effort and jerky movements, contributing to process reliability. For teams working with the GW625 for the first time, we recommend a familiarisation session on the unit, which we offer as an option.

Related glass lifters and lifting equipment

For lighter formats, the Glassworker GW425 or the compact GW295 is often sufficient. For pane weights above 625 kg, switch to the GW1125. For the vertical transport of heavy elements, many companies combine the glass lifter with a mini crane. References from glass construction are collected in the guide Mini cranes & vacuum lifters in glass construction.

Frequently asked questions about the Uplifter Glassworker GW625

How does the GW625 differ from the GW425?

The GW625 lifts up to 625 kg instead of 425 kg, reaches a higher working height of 3.646 m and works with a fully hydraulic rather than purely electric extension.

How heavy is the GW625 for transport?

The operating weight is 1,035–1,095 kg with counterweights, the empty weight around 890 kg. Depending on configuration, a larger vehicle is required for transport – Luibl takes care of the logistics.

Can the GW625 also be used indoors?

Yes, the GW625 is suitable for indoor and outdoor use; we check accessibility based on its width of around 0.83 m.

Which loads besides glass is the GW625 suitable for?

In addition to insulating glass, the GW625 also handles heavy metal, composite and stone panels with suitable suction pads.

Is the inspection included in the hire?

Yes. Luibl hands over the unit serviced and inspected and documents the periodic inspection.

Request the Uplifter Glassworker GW625 now

Secure the GW625 for your next large-scale glazing project. Request your non-binding rental quote – we will advise you on the configuration and clarify availability and transport.
